Accelerator Position Sensor (APS): Specifications: Specification

Items Specification
APS 1 APS 2
C.T 0.7 - 0.8 0.33 - 0.43
W.O.T 3.85 - 4.35 1.93 - 2.18

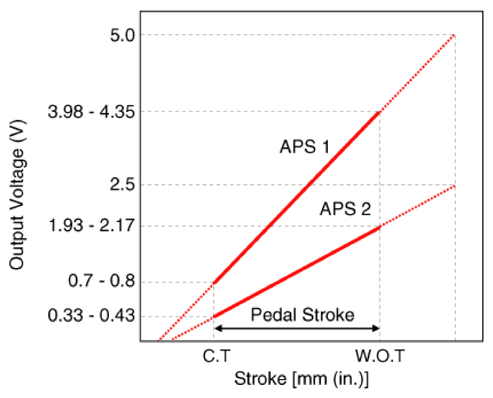

G14537852Courtesy of HYUNDAI MOTOR AMERICA
