Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

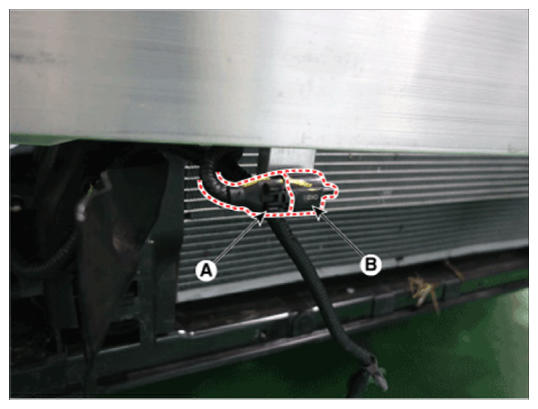

  3. Disconnect the ATS connector (A) and then remove the ATS (B).
    G14537800Courtesy of HYUNDAI MOTOR AMERICA
