Components Location

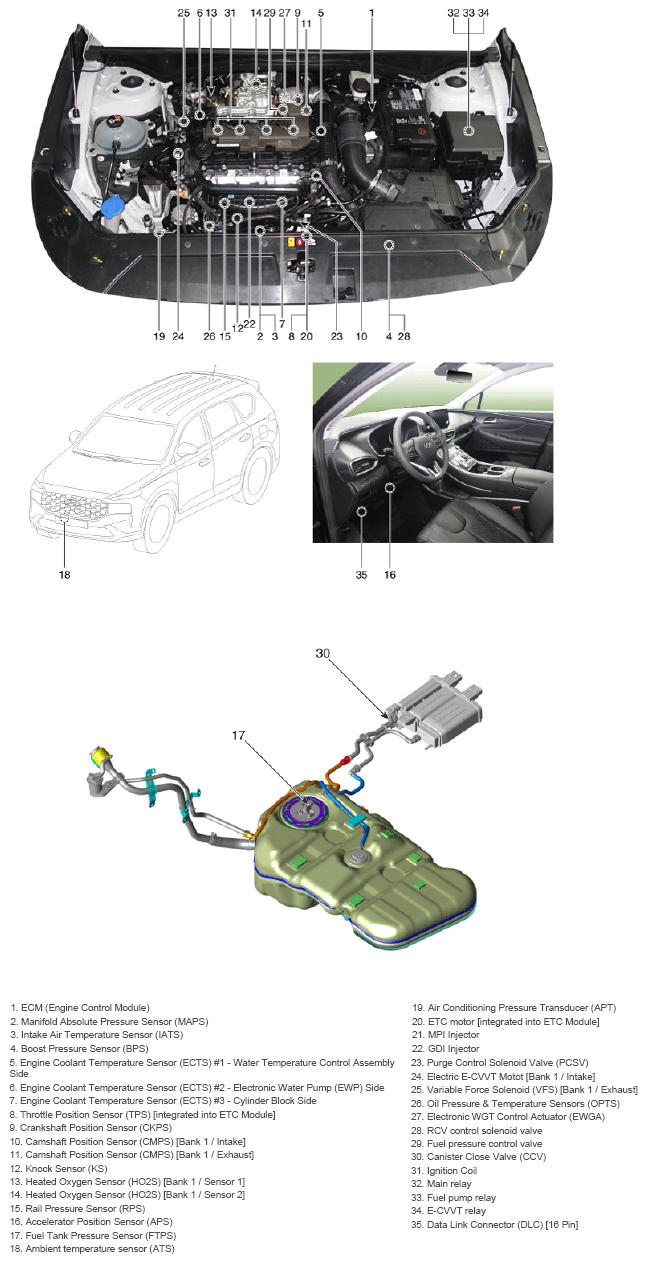

G14537761Courtesy of HYUNDAI MOTOR AMERICA

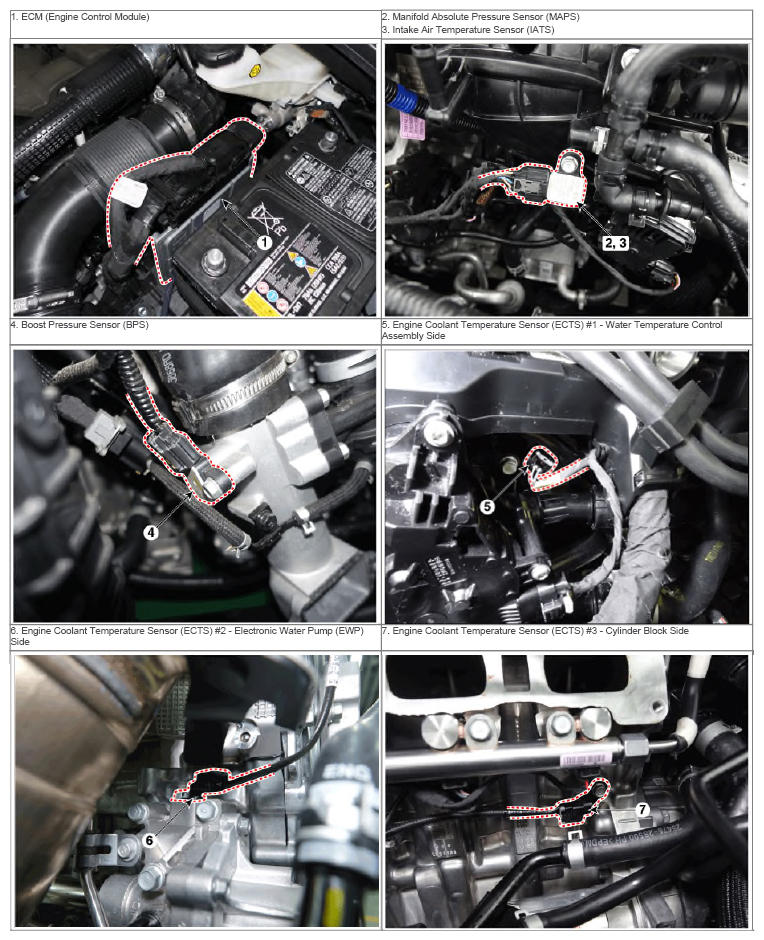

G14537762Courtesy of HYUNDAI MOTOR AMERICA

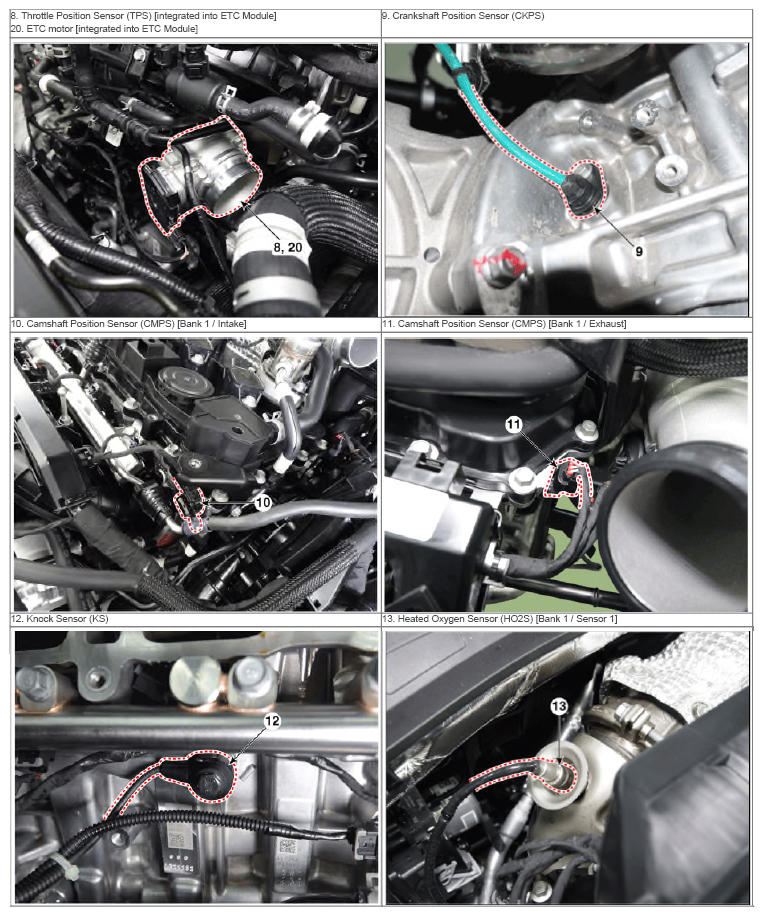

G14537763Courtesy of HYUNDAI MOTOR AMERICA

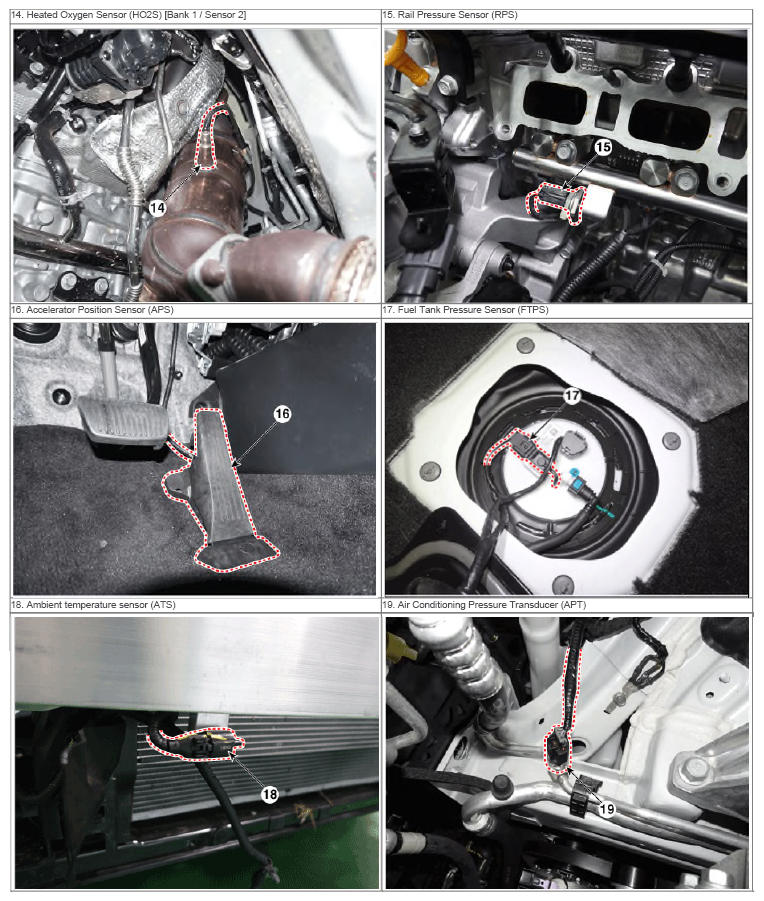

G14537764Courtesy of HYUNDAI MOTOR AMERICA

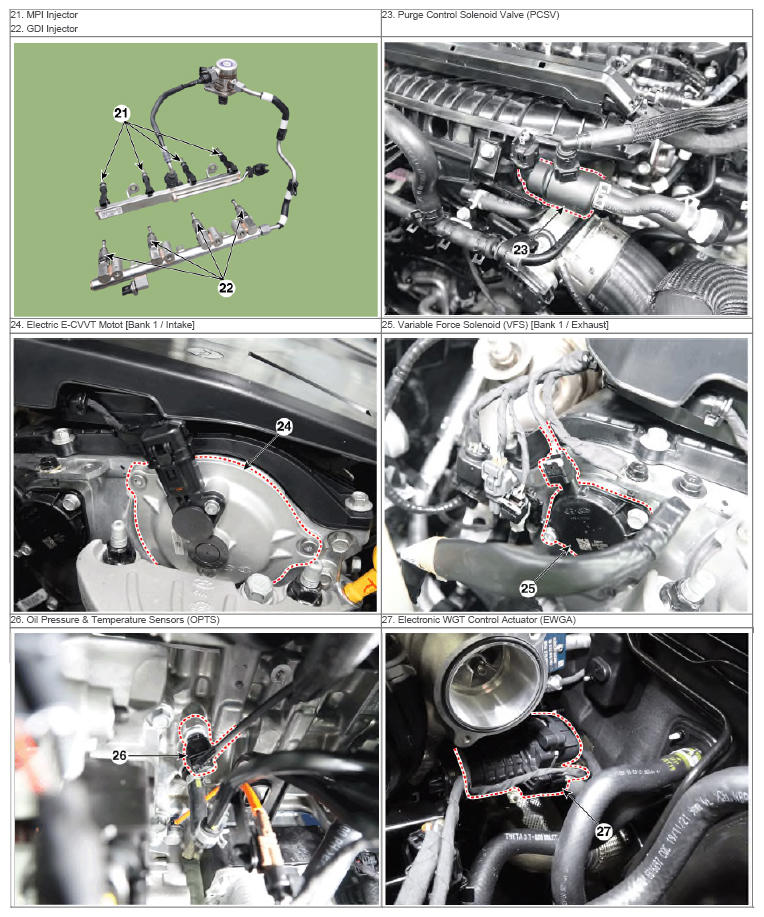

G14537765Courtesy of HYUNDAI MOTOR AMERICA

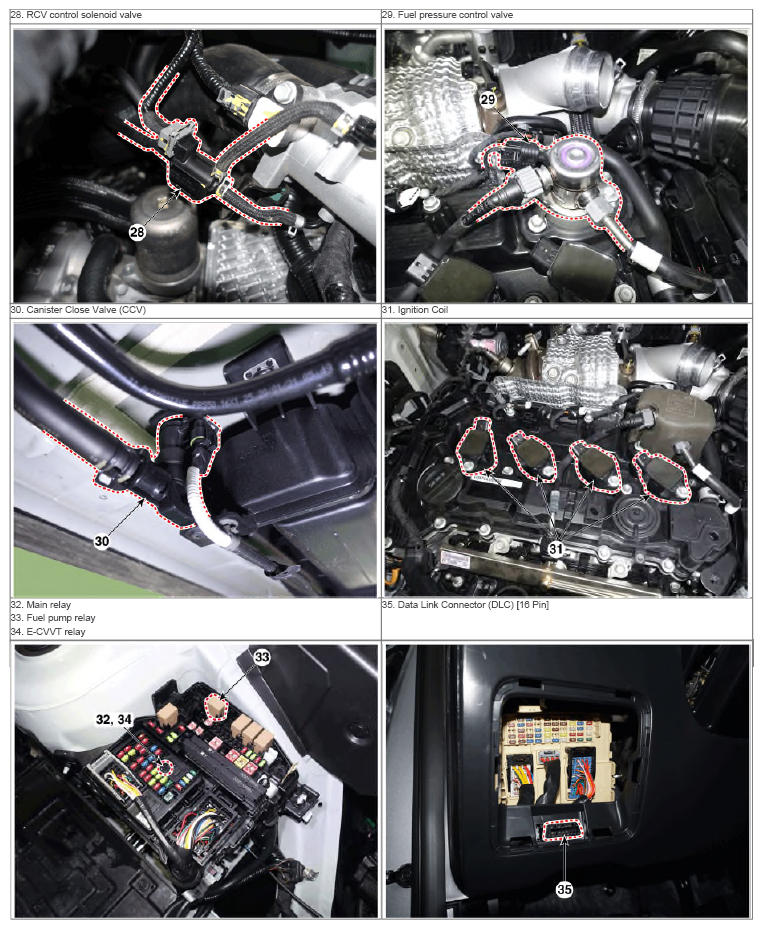

G14537766Courtesy of HYUNDAI MOTOR AMERICA
