MPI Injector

  1. Release the Residual Pressure in Fuel Line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  3. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

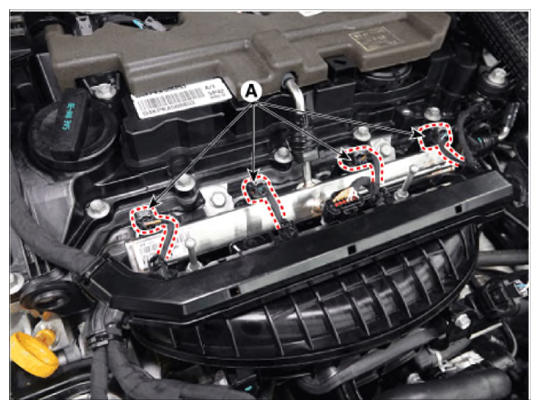

  4. Disconnector the injector connector (A).
    G14537867Courtesy of HYUNDAI MOTOR AMERICA

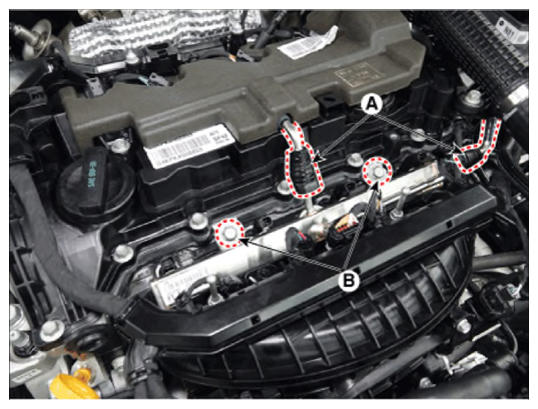

  5. Disconnect the fuel delivery quick-connector (A).
  6. Remove the delivery pipe mounting bolt (B).

    Tightening torque:  18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)

    G14537868Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

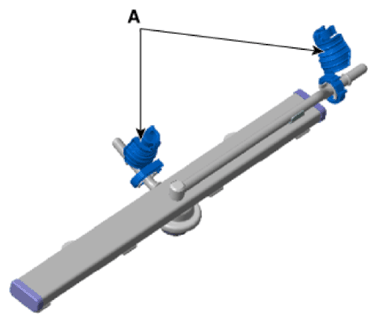

    • Open the clamp cover (A) before disconnecting the quick-connector. (If the clip is applied)
      G14537869Courtesy of HYUNDAI MOTOR AMERICA

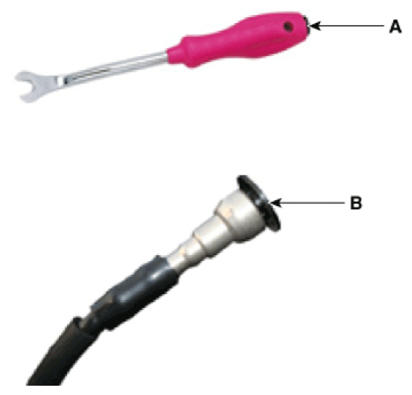

    • When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
    • If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.
      G14537870Courtesy of HYUNDAI MOTOR AMERICA

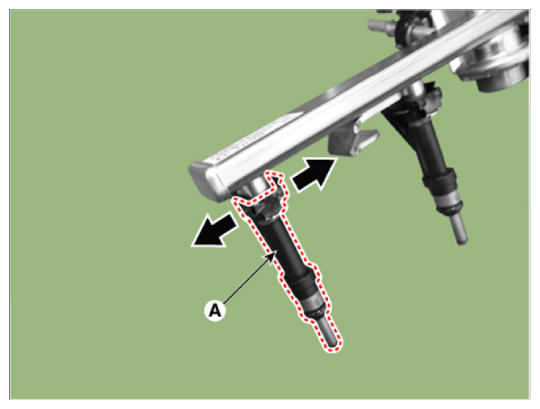

  7. Release the fixing clip, and then separate the injector (A) from the delivery pipe.
    G14537871Courtesy of HYUNDAI MOTOR AMERICA
