Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Intake Manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

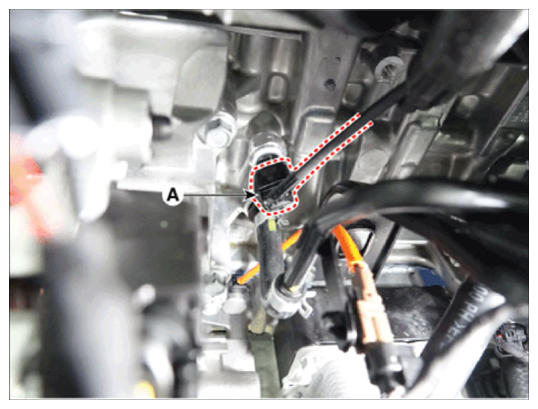

- Disconnect the oil temperature & oil pressure sensor connector (A).

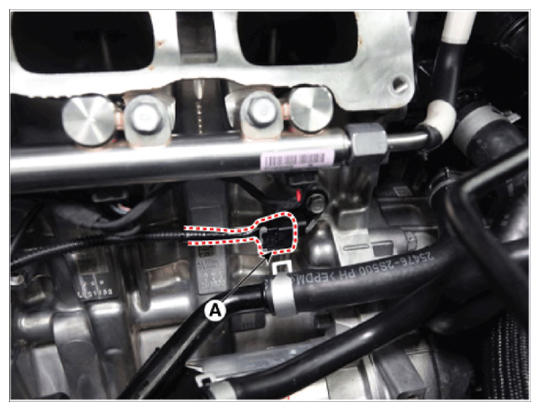

- Disconnect the engine coolant sensor connector (A).

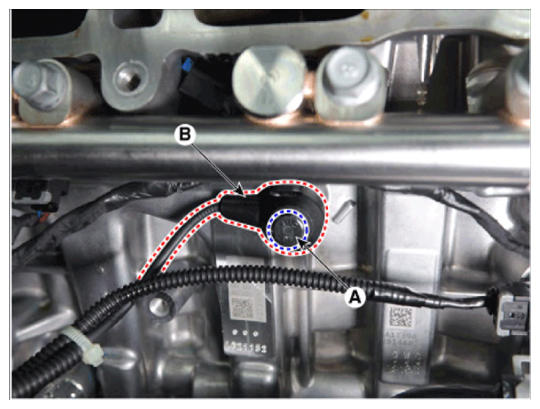

- Remove the installation bolt (A), and then remove the knock sensor (B).
Tightening torque: 7.8 - 11.7 N.m (1.9 - 2.4 kgf.m, 5.7 - 8.6 lb-ft)
