Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

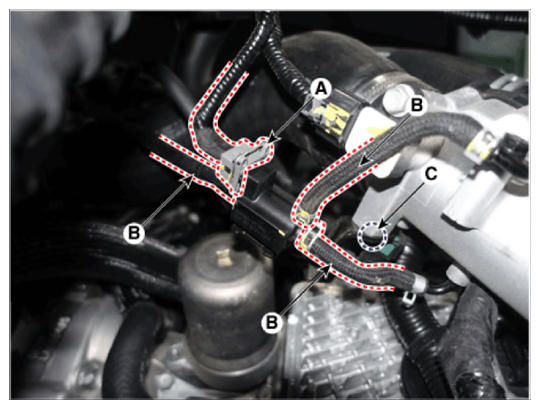

- Disconnect the RCV control solenoid valve connector (A).
- Disconnect the RCV control solenoid valve hoses (B), and then loosening the installing bolt (C).
