Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the air duct (A).
(Refer to Engine Mechanical System - "AIR CLEANER ")

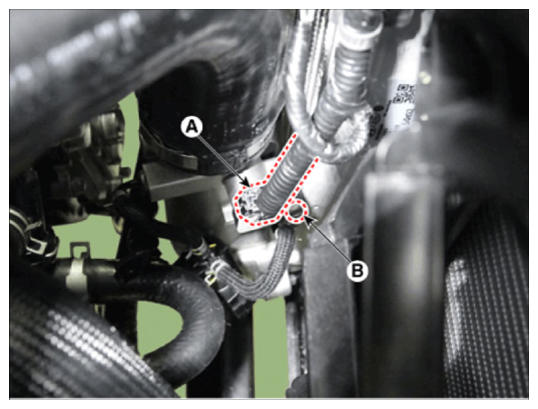

- Disconnect the boost pressure sensor connector (A).
- Remove the mounting bolts (B), and then remove the boost pressure sensor.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
