Components Location

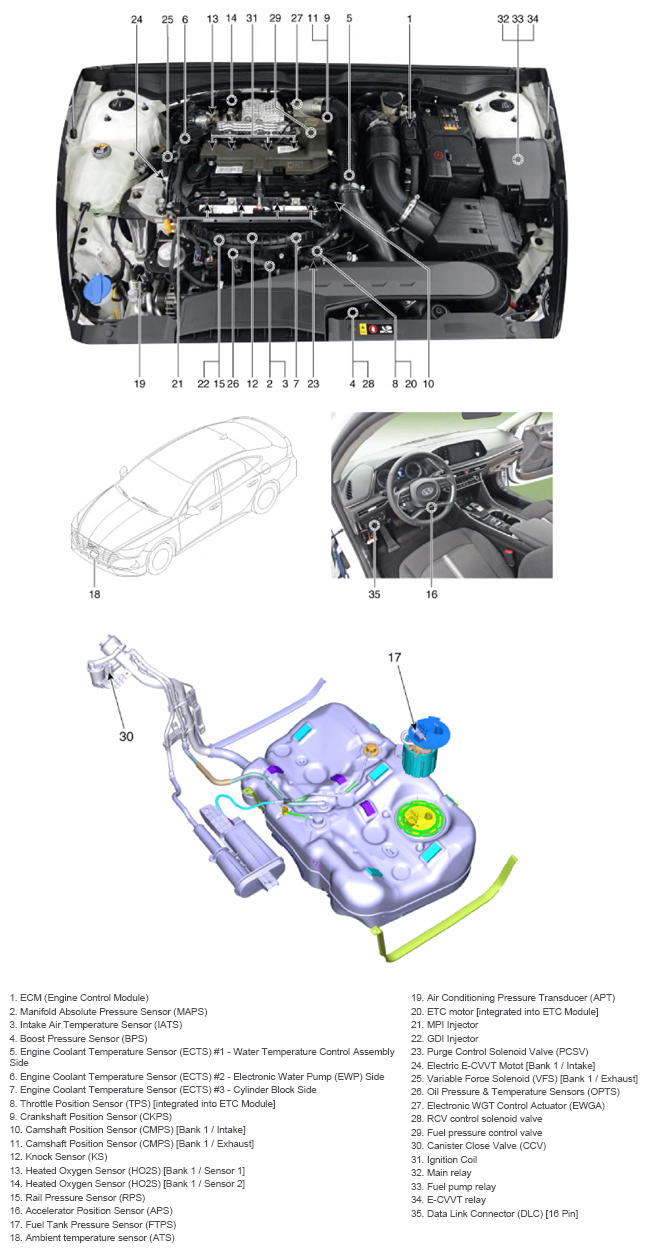

G14632833Courtesy of HYUNDAI MOTOR AMERICA

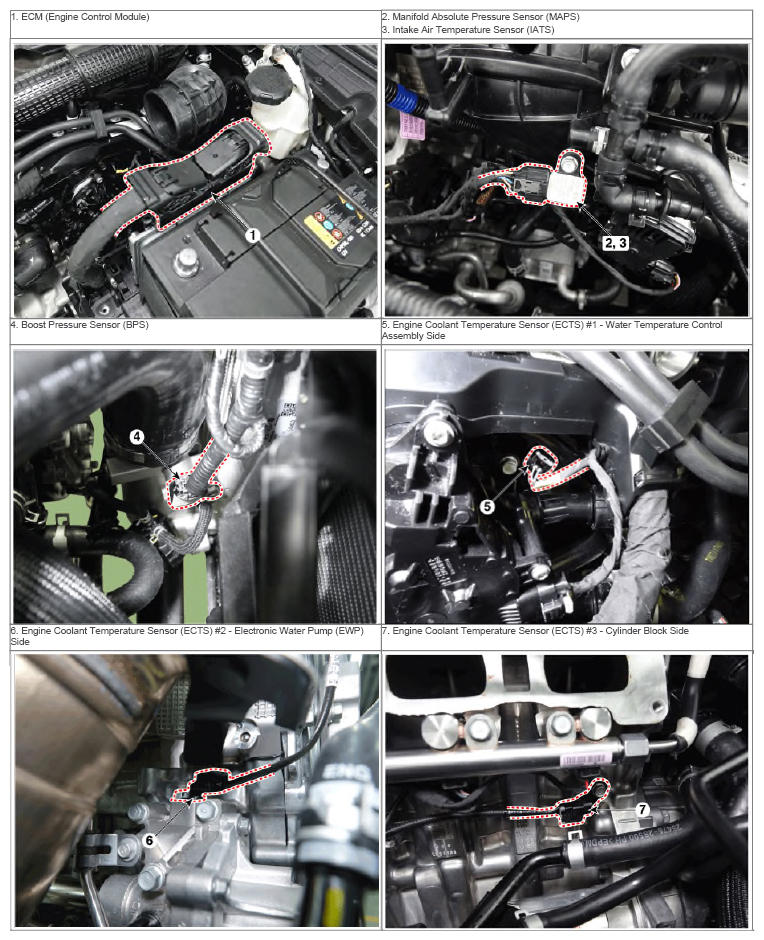

G14632834Courtesy of HYUNDAI MOTOR AMERICA

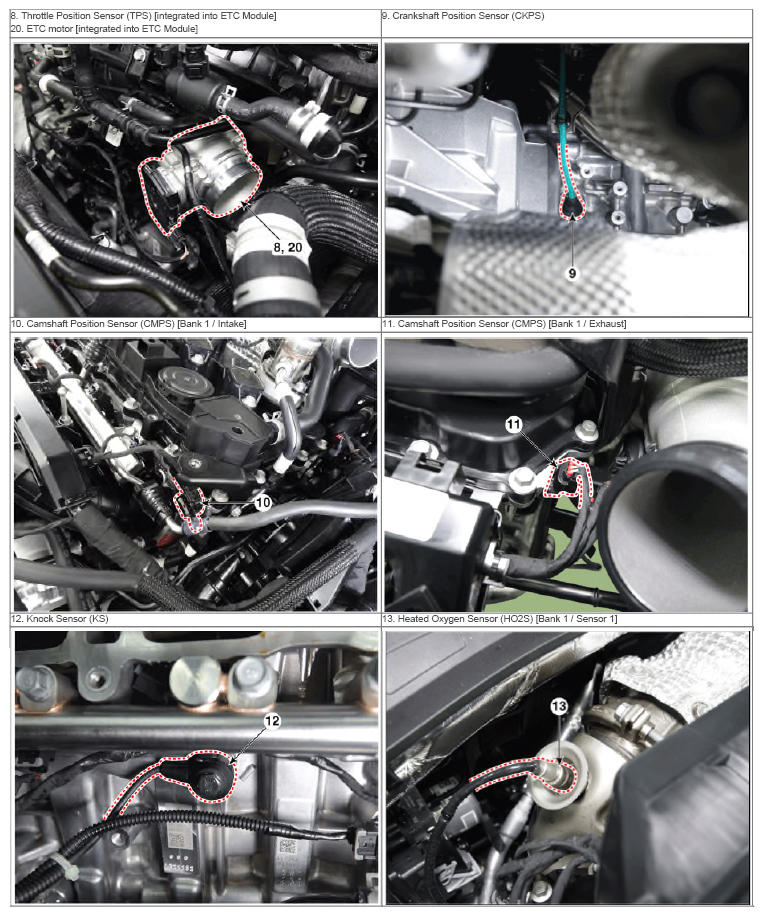

G14632835Courtesy of HYUNDAI MOTOR AMERICA

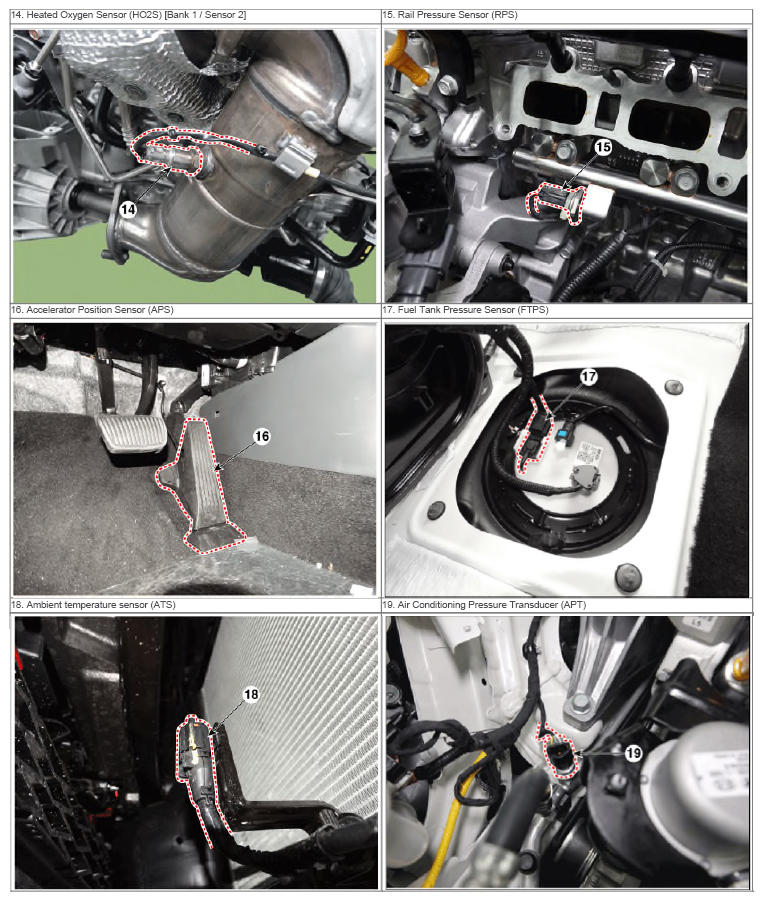

G14632836Courtesy of HYUNDAI MOTOR AMERICA

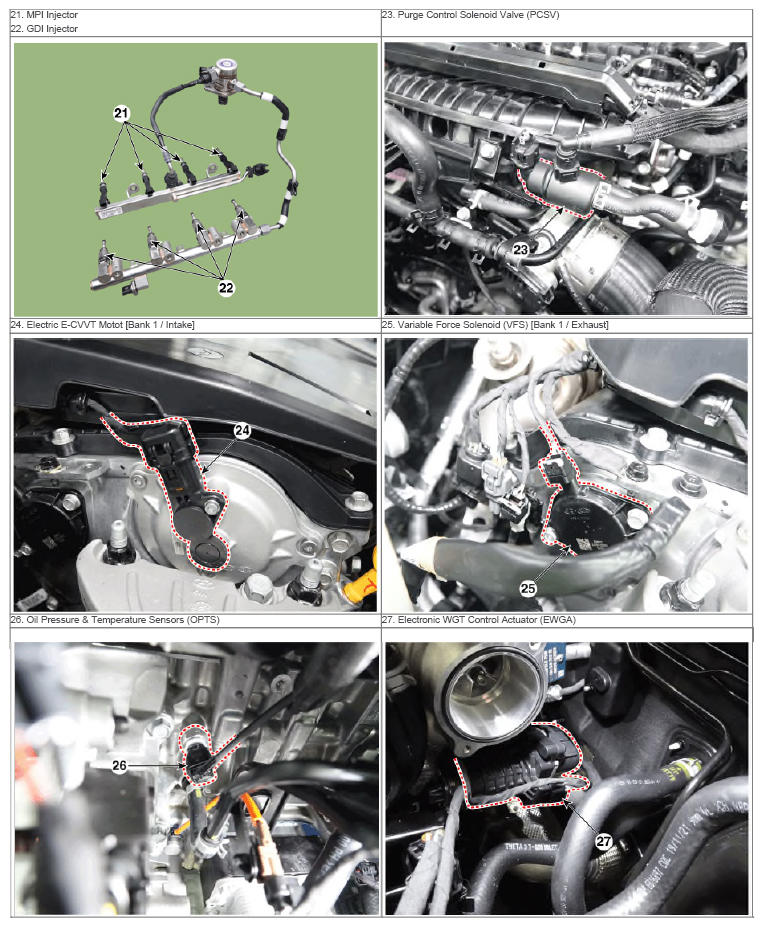

G14632837Courtesy of HYUNDAI MOTOR AMERICA

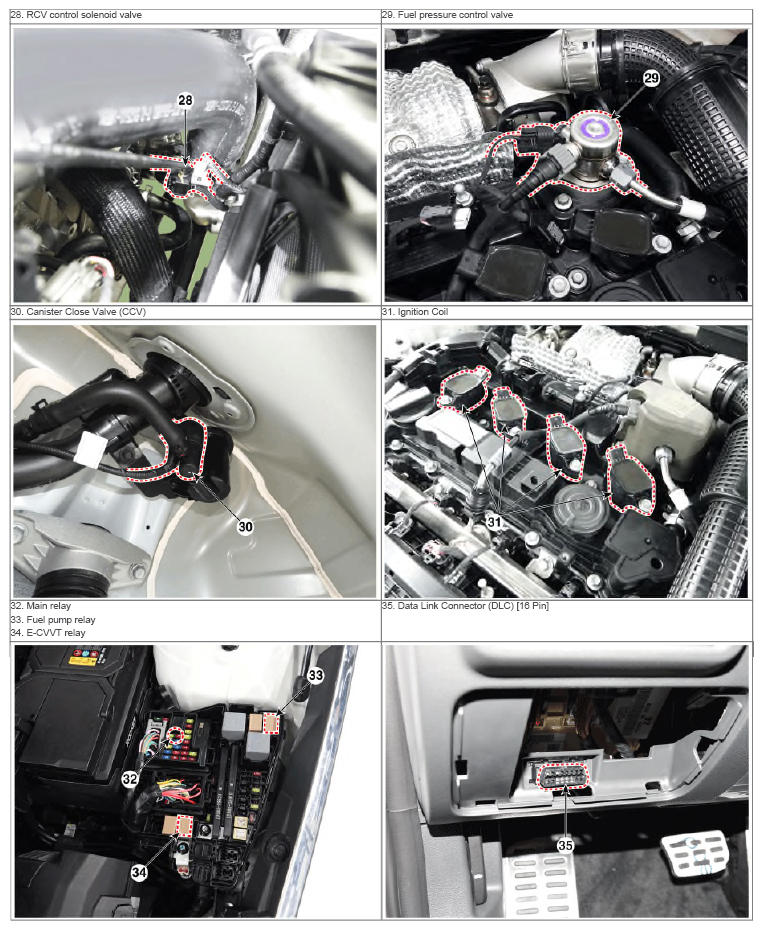

G14632838Courtesy of HYUNDAI MOTOR AMERICA
