Repair Procedures: Removal
- Turn the ignition switch off and disconnect the battery (-) terminal.

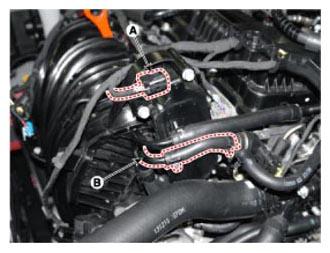

- Remove variable charge motion actuator connector (A) and three mounting bolts.
- Remove intake manifold vacuum pipe (B) in order to secure work space.

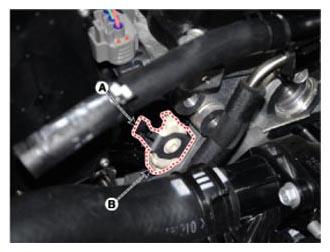

- Remove VCMA rod clip (A) and connection link between flap (B) using screwdriver.NOTE:
- VCMA connection link can be damaged. So, make sure to remove it in a horizontal direction.
- Make sure that groove part of the connection link (C) is pointing upward when mounting VCMA.
