Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

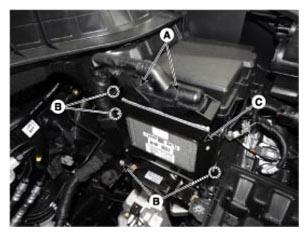

- Disconnect the ECM Connector (A).
- Remove the mounting bolt & nuts (B), and then remove the ECM (C).
ECM Bracket Mounting Nut:
9.8 - 14.7 N.m (1.0 - 1.5 kg.m, 7.2 - 10.8 lb-ft)
ECM Bracket Mounting Bolt:
21.5 - 32.3 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.8 lb-ft)

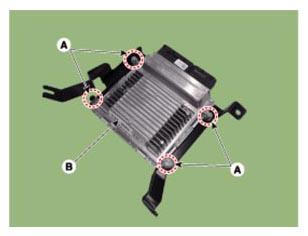

- Remove the mounting bolts & screw (A), and then remove the ECM (B) from the ECM bracket assembly.
ECM Mounting Nut:
8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb-ft)
