[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

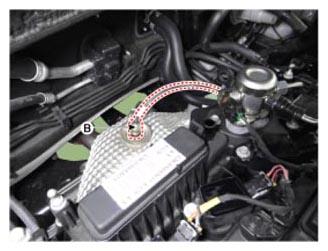

  2. Disconnect the connector (A), and then remove the sensor (B).
    G13035041Courtesy of HYUNDAI MOTOR AMERICA
    G13035042Courtesy of HYUNDAI MOTOR AMERICA
