Repair Procedures: Inspection

  1. Turn the ignition switch OFF.

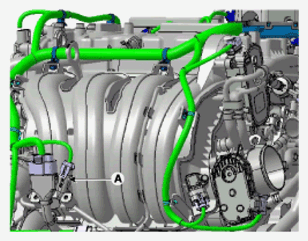

  2. Disconnect the knock sensor connector (A).
    G13035035Courtesy of HYUNDAI MOTOR AMERICA
  3. Measure resistance between the injector terminals 1 and 2.
  4. Check that the resistance is within the specification.

    Specification:  About 4.87 MΩ [20°C (68°F)]
