Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

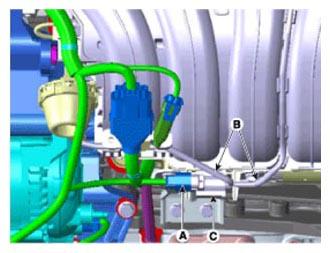

  2. Disconnect the variable intake solenoid valve connector (A) and vacuum hoses (B).
  3. Remove the variable intake solenoid valve after loosening the mounting bolt from the surge tank.
    G13035093Courtesy of HYUNDAI MOTOR AMERICA
