Compensation Requirement And Procedure

  1. Simultaneous replacement of 4WD ECU (Controller) and coupling
    • Does not require compensation.
  2. Replacement of coupling only
    • Reset the 4WD ECU's (Controller) clutch learning.
    G13021367Courtesy of HYUNDAI MOTOR AMERICA
    G13021368Courtesy of HYUNDAI MOTOR AMERICA
  3. Replacement of 4WD ECU (Controller) only
    • Before replacement: Check the ECU's clutch learning.

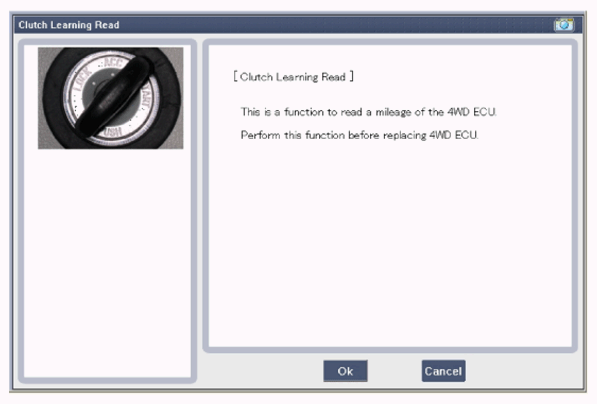

      G13021369Courtesy of HYUNDAI MOTOR AMERICA

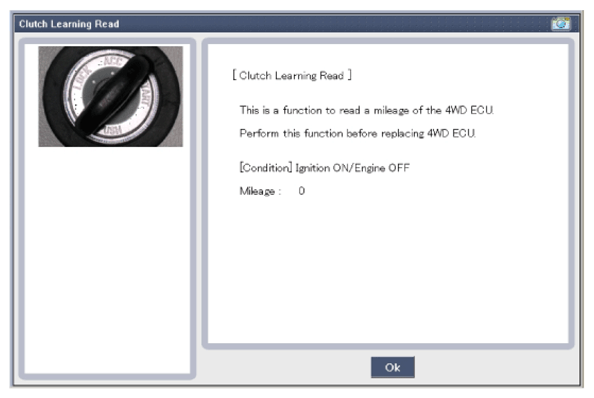

      G13021370Courtesy of HYUNDAI MOTOR AMERICA
    • After replacement: Enter the original ECU's clutch learning into the replacement ECU.

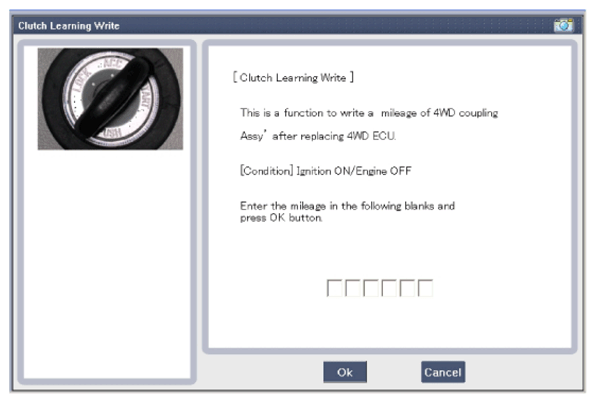

    G13021371Courtesy of HYUNDAI MOTOR AMERICA
