Components And Components Location: Components

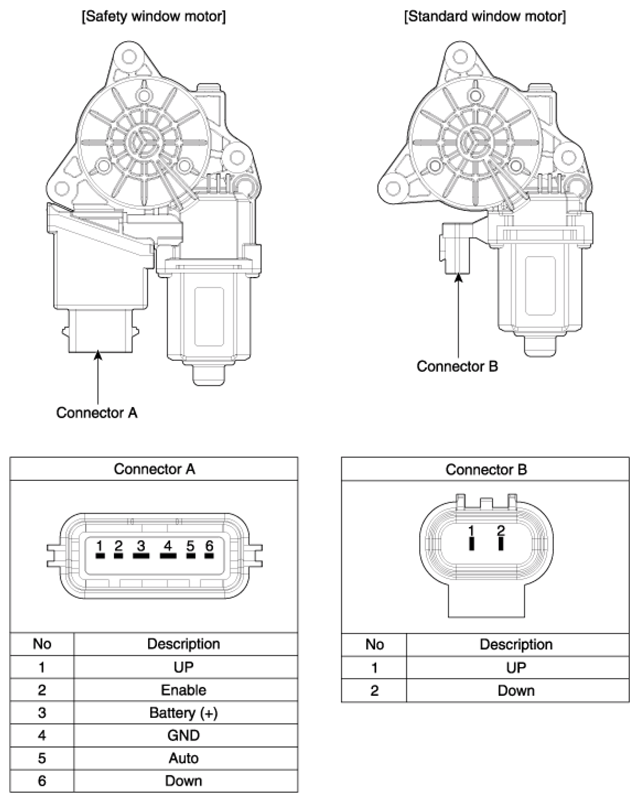

Fig 1: Power Window Motor Connector End View And Terminal Description
G13030468Courtesy of HYUNDAI MOTOR AMERICA
