Assist Power Window Switch

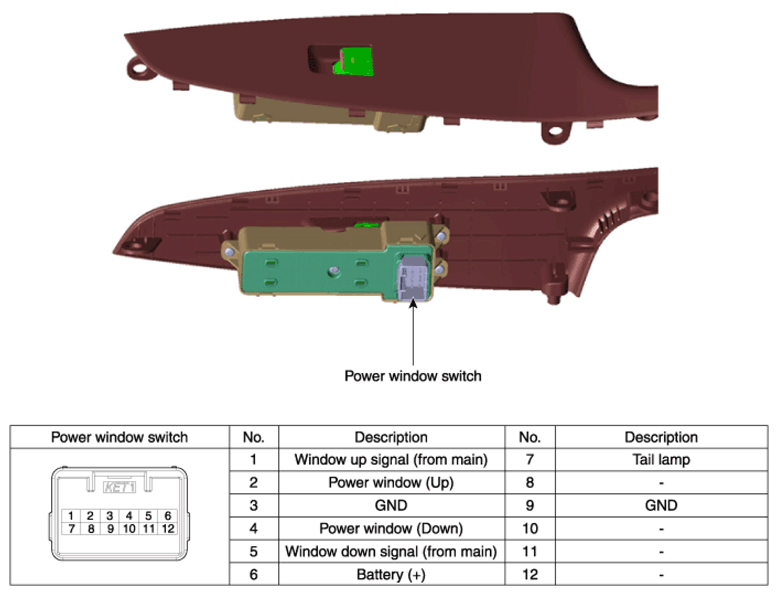

Fig 1: Assist Power Window Switch Connector End View And Terminal Description
G13030476Courtesy of HYUNDAI MOTOR AMERICA
