Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

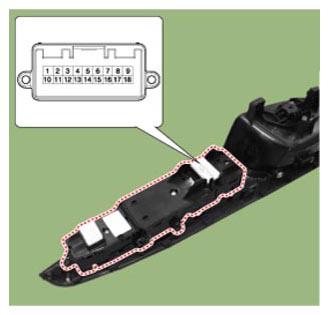

  3. Disconnect the power mirror switch connector from the door trim.
    G13030483Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown below.
