Driver/Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

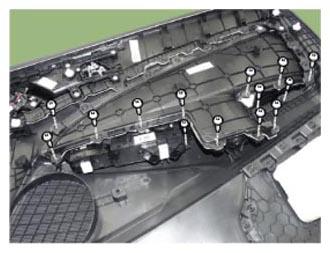

  3. Loosen the mounting screws.
    G13030492Courtesy of HYUNDAI MOTOR AMERICA

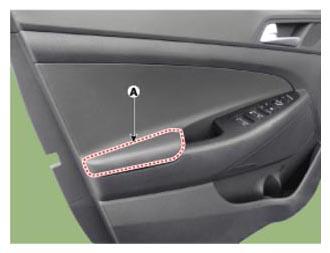

  4. Remove the door trim armrest (A).
    G13030493Courtesy of HYUNDAI MOTOR AMERICA

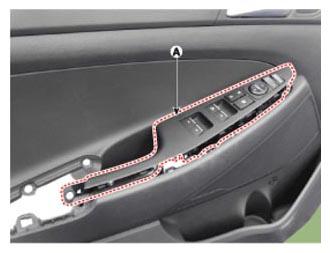

  5. Remove the power window switch assembly (A).
    G13030494Courtesy of HYUNDAI MOTOR AMERICA

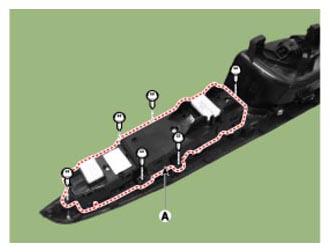

  6. Remove the power window switch (A) after loosening the mounting screws.
    G13030495Courtesy of HYUNDAI MOTOR AMERICA
