Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Remove the battery.

    (Refer to Charging System - "BATTERY ")

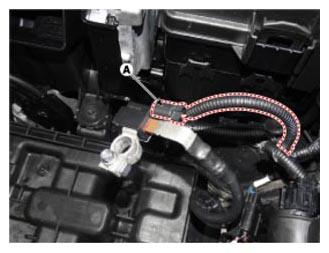

  3. Disconnect the battery sensor connector (A).
    G13016983Courtesy of HYUNDAI MOTOR AMERICA

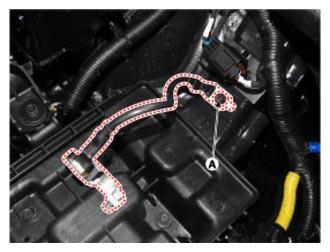

  4. Remove the battery negative (-) cable after removing the bolt (A).
    G13016984Courtesy of HYUNDAI MOTOR AMERICA
