Components And Components Location: Component

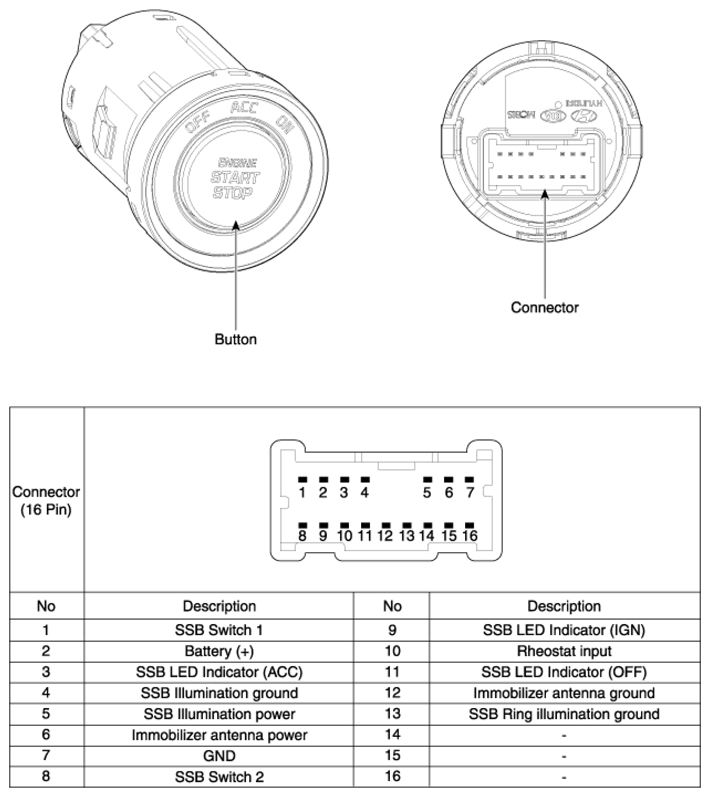

Fig 1: Start/Stop Button Connector End View And Terminal Description
G13033445Courtesy of HYUNDAI MOTOR AMERICA
