Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Separate the start/stop button from the crash pad after loosening the retaining clips (A).
    G13033446Courtesy of HYUNDAI MOTOR AMERICA

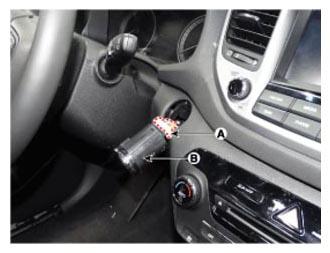

  4. Remove the start/stop button (B) after disconnecting the connector (A).
G13033447Courtesy of HYUNDAI MOTOR AMERICA
