Accelerator Position Sensor (APS): Specifications: Specification

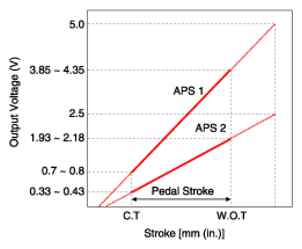

Accelerator Position Output Voltage (V)
APS1 APS2
C.T 0.7 ~ 0.8 0.33 ~ 0.43
W.O.T 3.85 ~ 4.35 1.93 ~ 2.18
G13020969Courtesy of HYUNDAI MOTOR AMERICA
