Components Location

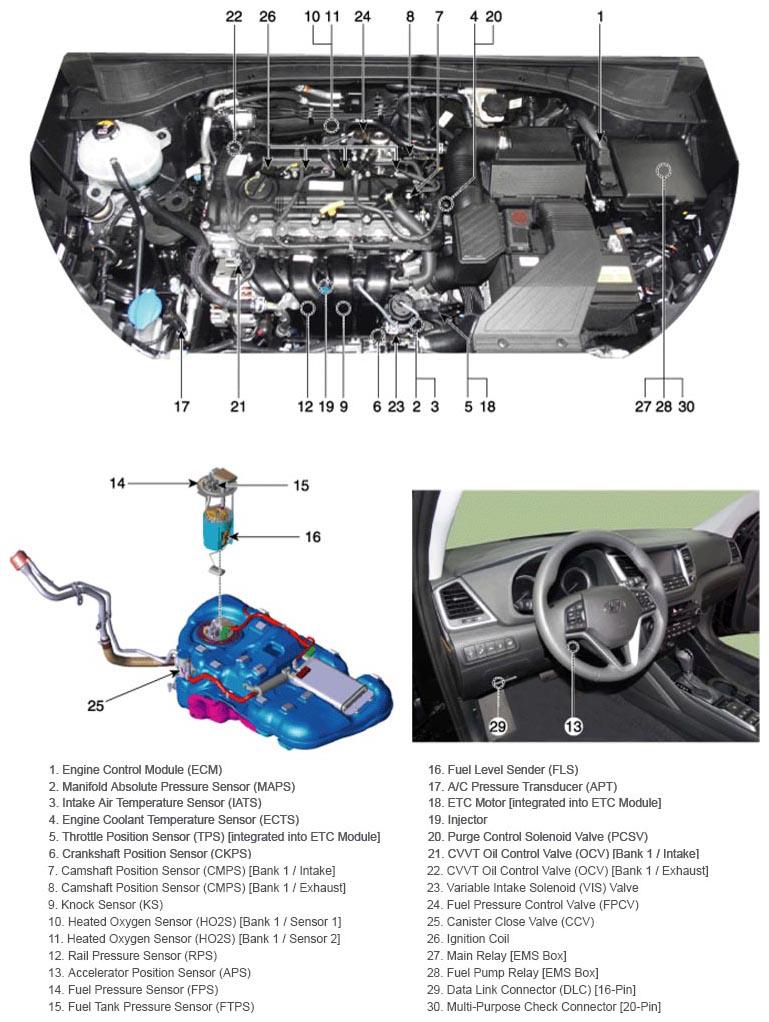

G13020916Courtesy of HYUNDAI MOTOR AMERICA

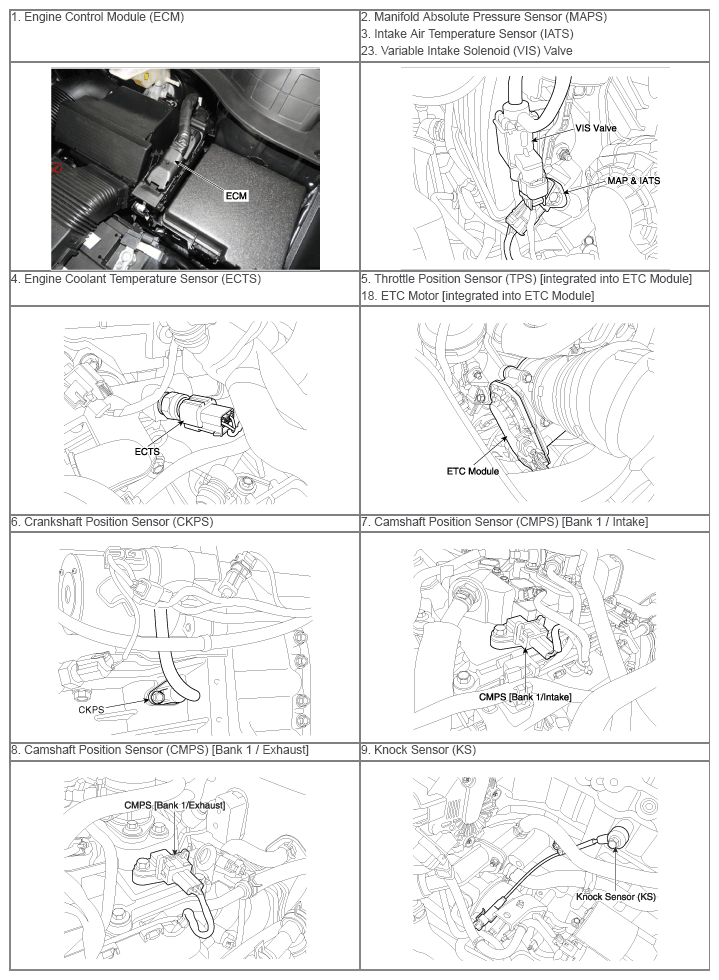

G13020917Courtesy of HYUNDAI MOTOR AMERICA

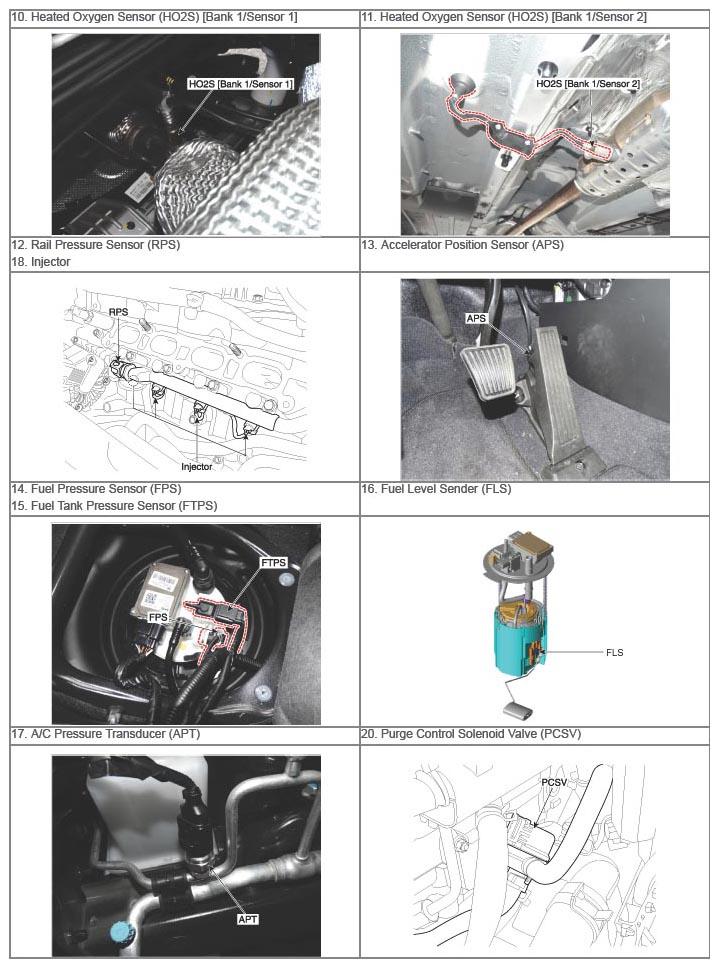

G13020918Courtesy of HYUNDAI MOTOR AMERICA

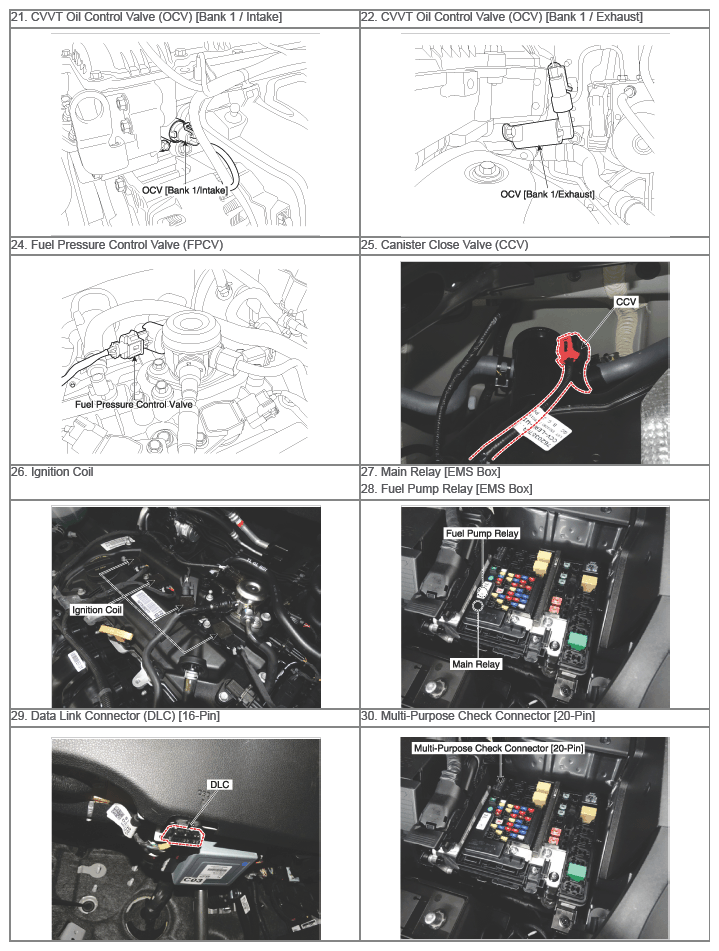

G13020919Courtesy of HYUNDAI MOTOR AMERICA
