Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

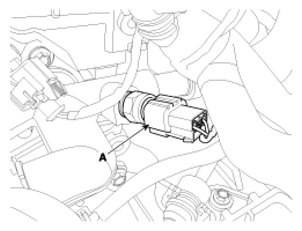

  2. Disconnect the engine coolant temperature sensor connector (A).
    G13020939Courtesy of HYUNDAI MOTOR AMERICA
  3. Supplement the engine coolant.

    (Refer to Engine Mechanical System - "COOLING SYSTEM ")
