[Bank 1/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

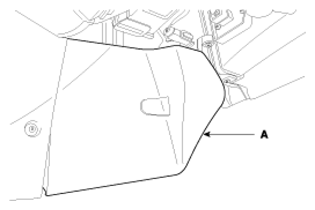

  2. Remove the console side cover (A).
    G13020959Courtesy of HYUNDAI MOTOR AMERICA

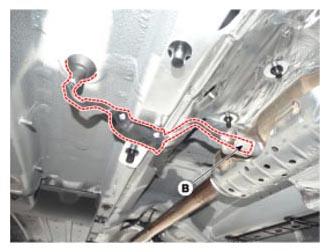

  3. Disconnect the connector (A), and then remove the sensor (B).
    NOTE: Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
    G13020960Courtesy of HYUNDAI MOTOR AMERICA
    G13020961Courtesy of HYUNDAI MOTOR AMERICA
