Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM ")

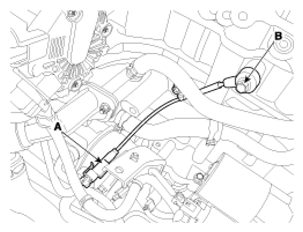

- Disconnect the knock sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor from the cylinder block.
