Components Location

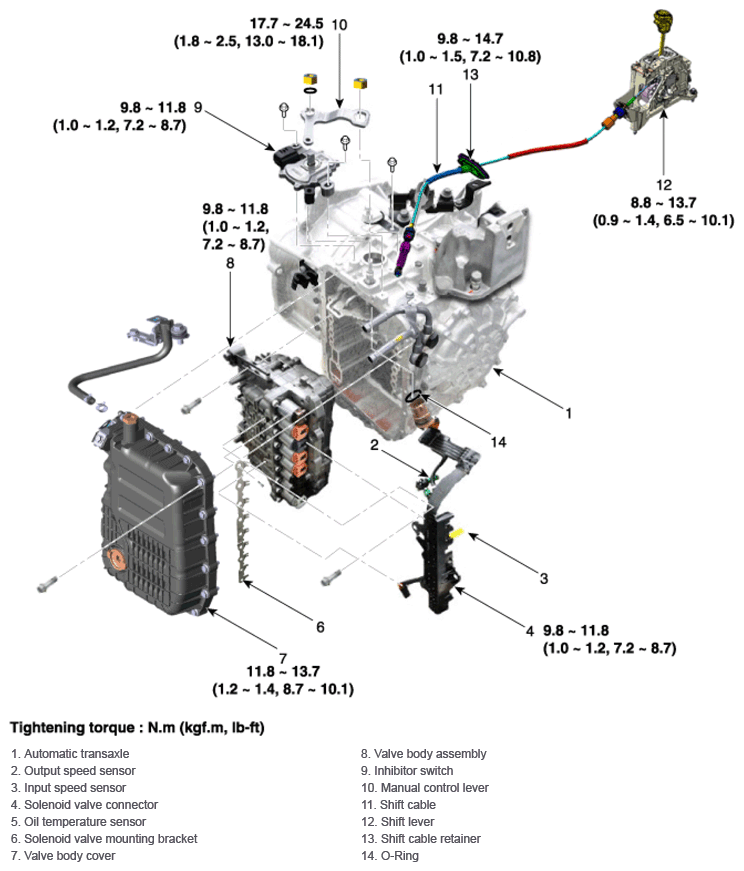

Fig 1: Automatic Transaxle Control System Components Location With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

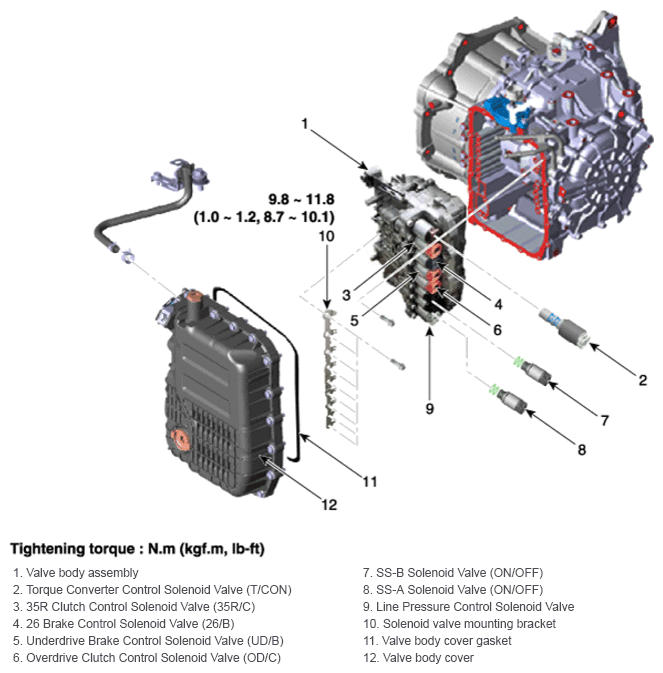

Fig 2: Automatic Transaxle Control System Components Location With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
