Repair Procedures: Removal
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

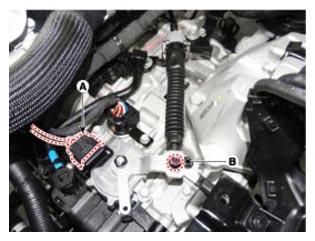

- Disconnect the inhibitor switch connector (A).
- Remove the shift cable mounting nut (B).

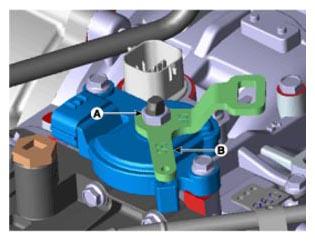

- Remove the manual control lever (B) and the washer after removing a nut (A).

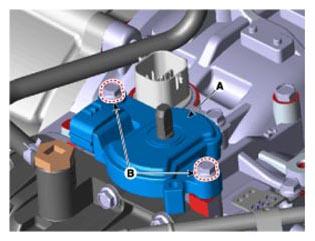

- Remove the inhibitor switch (A) after removing the bolts (B).
