Repair Procedures: Installation

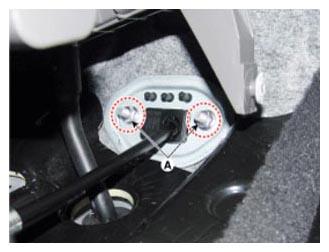

- Install the shift cable retainer (A).
Tightening torque:
9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)
NOTE:- Install the cable after placing the shift lever and the manual control lever in the N position.

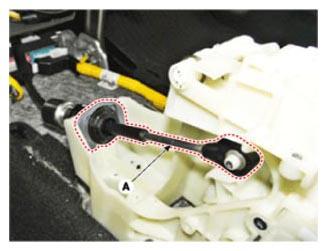

- Install the shift cable (A) in the shifter lever.

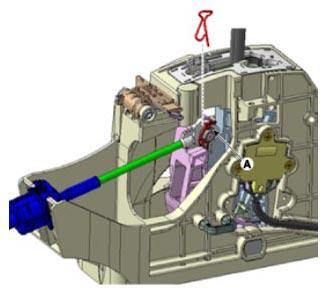

- Install the snap pin (A).
- Install the shift cable (B) in the cable bracket (C).

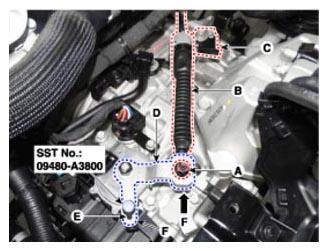

- Align the hole (E) in the manual control lever with the "N" position hole (F) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No: 09480-A3800).
- Lightly tighten the nut (A) after connected the shift cable (B) in the manual control lever (D).
- Push shift cable (B) lightly to "F" direction shown to eliminate free play of shift cable.
- Tighten the nut (A) to the specified torque.
Tightening torque:
9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)
- Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
- Install the airbag module.
(Refer to Restraint - "AIRBAG MODULE ")

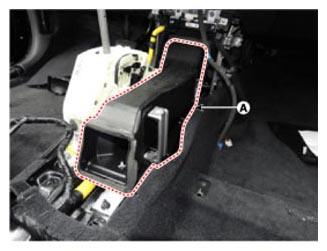

- Install the air duct (A).
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")
- Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
