Repair Procedures: Removal

  1. Remove the valve body assembly.

    (Refer to Valve body System - "VALVE BODY ")

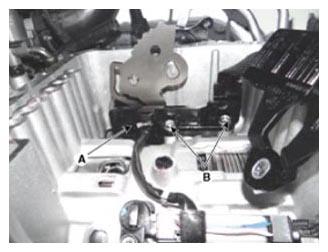

  2. Disconnect the input & output speed sensor connector (A).
  3. Loosen the main connector bolt (B).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13021167Courtesy of HYUNDAI MOTOR AMERICA

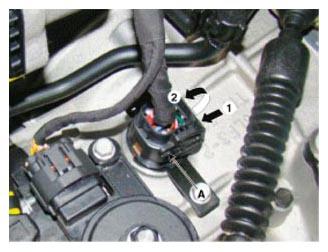

  4. Disconnect the solenoid valve connector (A).
    1. Press the lock
    2. Pull up lever
    G13021168Courtesy of HYUNDAI MOTOR AMERICA

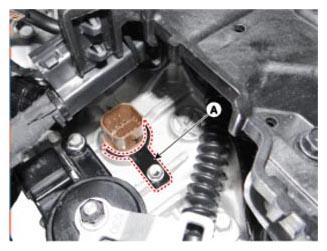

  5. Remove the solenoid valve connector mounting clip (A).
    G13021169Courtesy of HYUNDAI MOTOR AMERICA

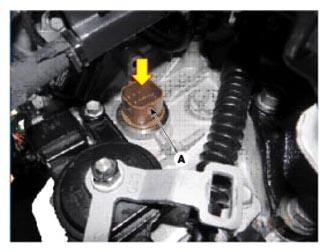

  6. Remove the solenoid valve connector (A) by pushing down from the transaxle.
G13021170Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Replace the O-Ring (A) before reinstalling solenoid valve connector.
G13021171Courtesy of HYUNDAI MOTOR AMERICA
