Transaxle Oil Temperature Sensor: Specifications
* Type: Negative Thermal Coefficient Type

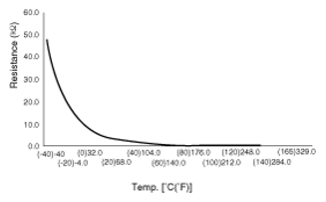

| Temp. [(°C)°F] |
Resistance (kΩ) |
| (-40) -40 |
48.1 |
| (-20) -4.0 |
15.6 |
| (0) 32.0 |
5.88 |
| (20) 68.0 |
2.51 |
| (40) 104.0 |
1.19 |
| (60) 140.0 |
0.61 |
| (80) 176.0 |
0.32 |
| (100) 212.0 |
0.18 |
| (120) 248.0 |
0.11 |
| (140) 284.0 |
0.07 |
| (160) 320.0 |
0.04 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
