Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

[Bank 1/Intake #1]

G13055579Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Intake #2]

G13055580Courtesy of HYUNDAI MOTOR AMERICA

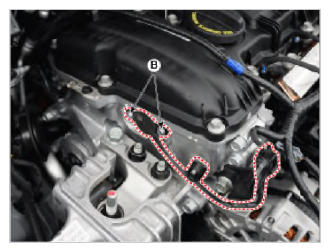

G13055581Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Exhaust]

G13055582Courtesy of HYUNDAI MOTOR AMERICA
