Components Location

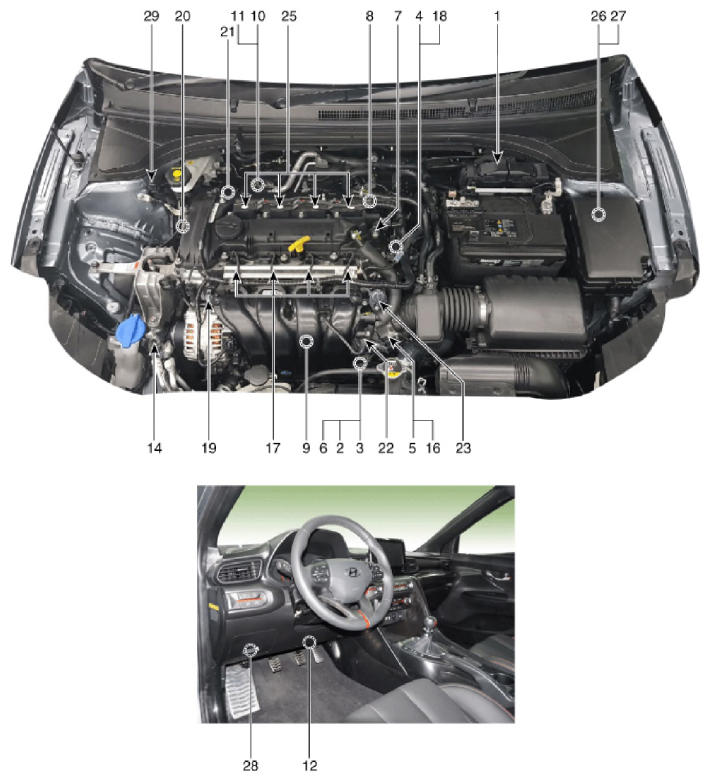

G13055506Courtesy of HYUNDAI MOTOR AMERICA

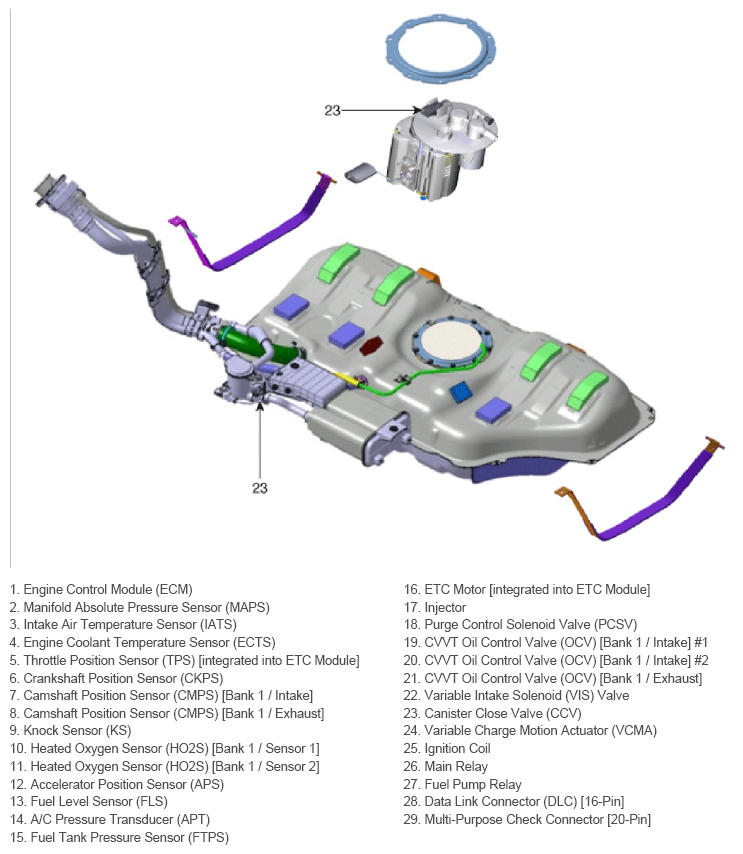

G13055507Courtesy of HYUNDAI MOTOR AMERICA

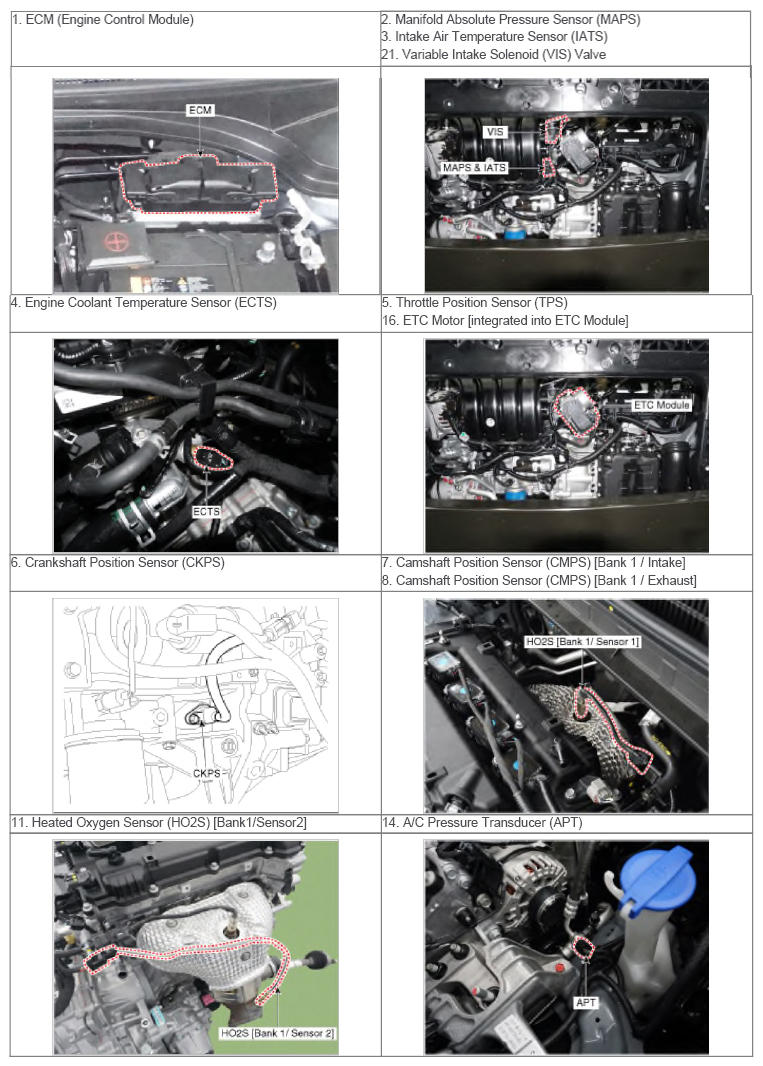

G13055508Courtesy of HYUNDAI MOTOR AMERICA

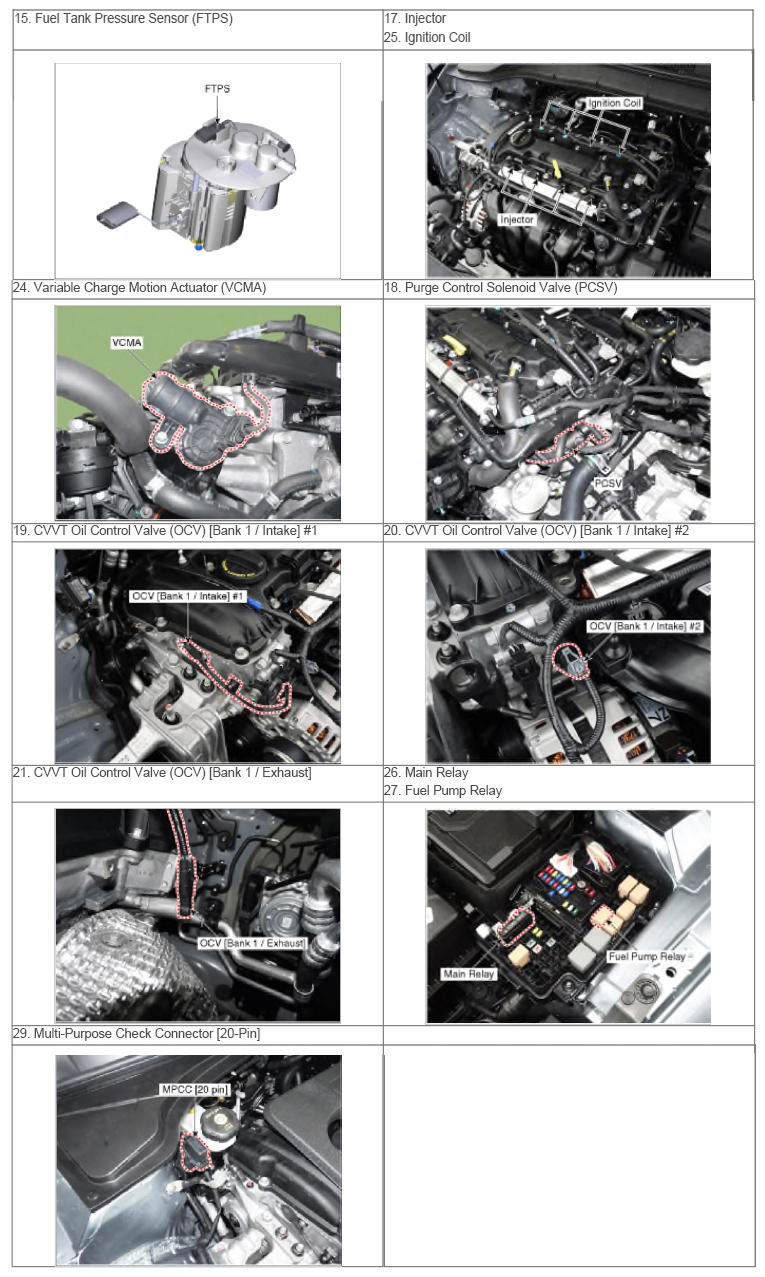

G13055509Courtesy of HYUNDAI MOTOR AMERICA
