Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the resonator and the air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

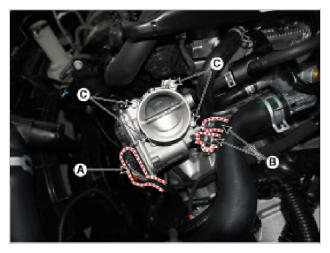

- Disconnect the ETC module connector (A), coolant hoses (B) from the ETC module, unfasten the bolts (C), and then remove the ETC module from the engine.
