Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

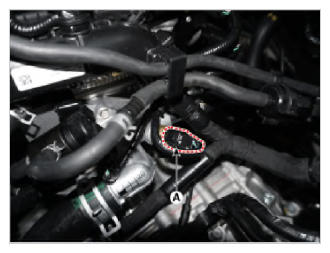

2. Disconnect the engine coolant temperature sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

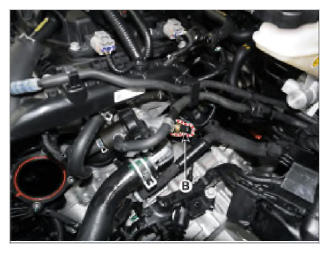

3. Remove the sensor (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION:

   • Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
4. Supplement the engine coolant.

(Refer to Engine Mechanical System - "COOLANT ")
