Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.

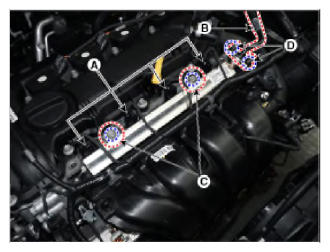

- Disconnect the injector connector (A).
- Remove the feed pipe (B) after loosening the mounting nuts (D).
- Remove the installation bolt (C), and then remove the delivery pipe & injector assembly from the engine.

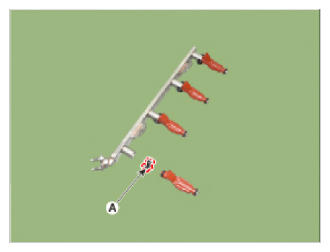

- Remove the fixing clip (A), and then separate the injector from the delivery pipe.
