Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the engine cover.

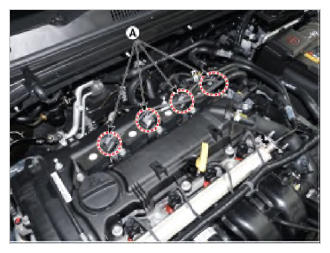

  3. Disconnect the ignition coil connector (A).
    G13055380Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

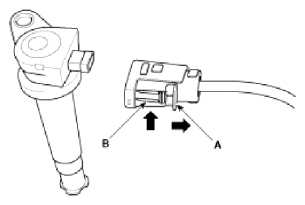

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13055381Courtesy of HYUNDAI MOTOR AMERICA

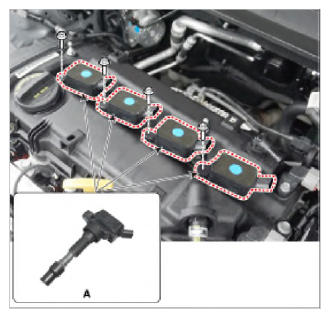

  4. Remove the ignition coil (A) after loosening the mounting bolts.
G13055382Courtesy of HYUNDAI MOTOR AMERICA
