Tire Wear: Notes

  1. Measure the tread depth of the tires.

    Tread depth [limit]  : 1.6 mm (0.063 in)

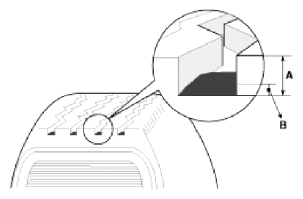

  2. If the remaining tread depth (A) is less than the limit, replace the tire.
    NOTE:
    • When the tread depth of the tires is less than 1.6 mm (0.063 in), the wear indicators (B) will appear.
    G13053092Courtesy of HYUNDAI MOTOR AMERICA
