Repair Procedures: Removal

  1. Remove the shift lever knob & boots (A) pull both of it up.
    G13055967Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  3. Disconnect the wiring (A) and connector (B).

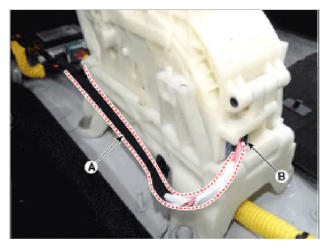

    G13055968Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the shift cable.
    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Release the lock and then remove the cable socket (C).

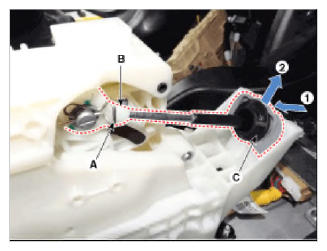

      G13055969Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the shift lever assembly (A) after removing the bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

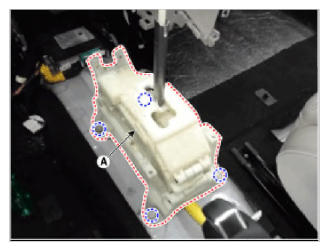

    G13055970Courtesy of HYUNDAI MOTOR AMERICA
