Repair Procedures: Removal

CAUTION:

When Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

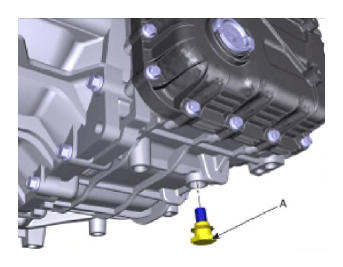

Remove the drain plug (A) and drain the ATF totally and then reinstall the drain plug.

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket before reinstalling the drain plug.
- After the installation, start the engine and then check if there are any leakages from the drain plug.

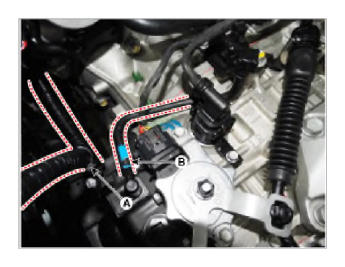

Remove the wiring mounting clip (A).
Disconnect the air breather hose (B) from the valve body cover.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

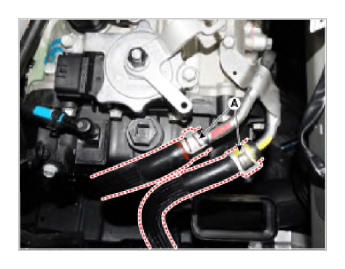

Disconnect the hose (A) after removing the automatic transaxle fluid cooler hose clamp.

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Carefully install the clamp not to damage the hose.
- Install the clamp in a correct direction not to be interfered with other parts.
- After the installation, start the engine and then check if there are any leakages from the hose.

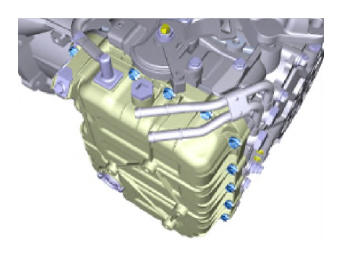

Remove the valve body cover (A).

Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Replace the gasket (A) before reinstalling the valve body cover.

Courtesy of HYUNDAI MOTOR AMERICA

After the installation, start the engine and then check if there are any leakages from the valve body cover.

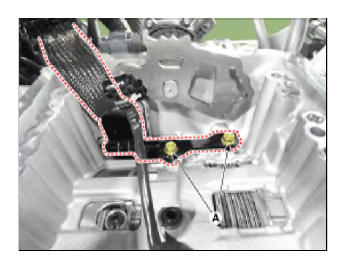

Disconnect the oil temperature sensor and solenoid valve connector (A) from the valve body.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Check for the looseness, poor connection, bending, corrosion, contamination, deterioration, or damage before reinstalling the solenoid valve connector.

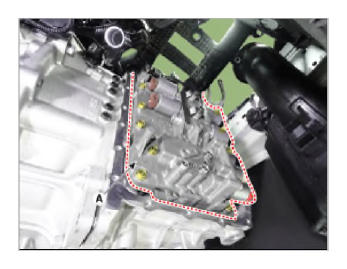

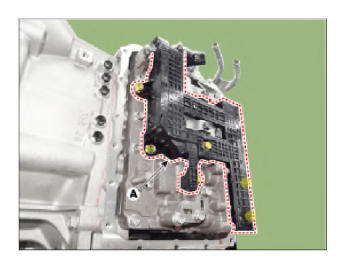

Remove the valve body assembly (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

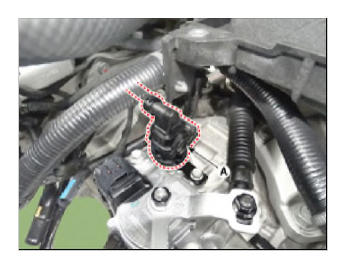

Disconnect the input & output speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

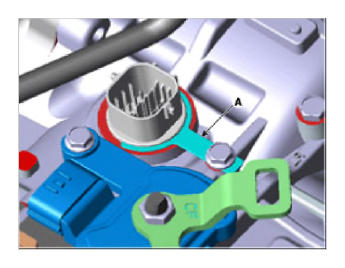

Loosen the main connector bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

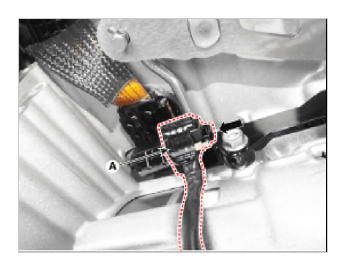

Disconnect the solenoid valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the solenoid valve connector mounting clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

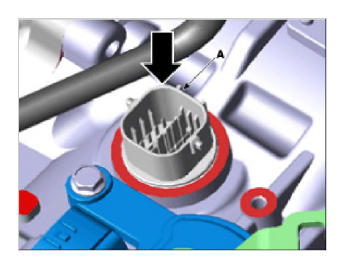

Remove the solenoid valve connector (A) by pushing down from the transaxle.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Replace the O-Ring (A) before reinstalling solenoid valve connector.

Courtesy of HYUNDAI MOTOR AMERICA
