Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

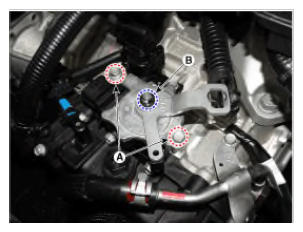

- Lightly tighten the bolts (A) after installing the inhibitor switch.
- Lightly tighten the nut (B) after installing the manual control lever.

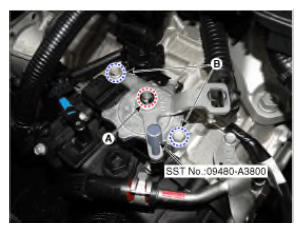

- Align the hole in the manual control lever with the "N" position hole of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.: 09480 - A3800).
- Tighten the nut (A) and bolts (B) with the specified torque.
Tightening torque:
- 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)
- 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

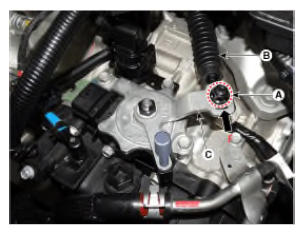

- Lightly tighten the nut (A) after connected the shift cable (B) in the manual control lever (C).
- Push nut (A) lightly to "F" direction shown to eliminate free play of shift cable.
- Tighten the nut (A) with the specified torque.
Tightening torque:
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
- Remove the inhibitor switch guide pin (SST No.: 09480 - A3800) from the hole.

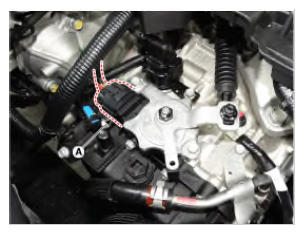

- Connect the inhibitor switch connector (A).
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Connect the battery negative (-) cable.
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
