Repair Procedures: Inspection

Using the GDS, check the input/output speed sensor waveforms.
- Turn OFF the ignition switch.
- Connect the GDS to the Data Link Connector (DLC) on the lower crash pad.
- Ignition "ON" & Engine "ON".

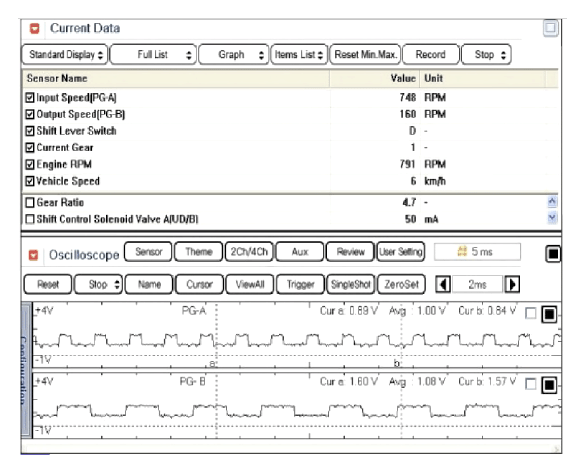

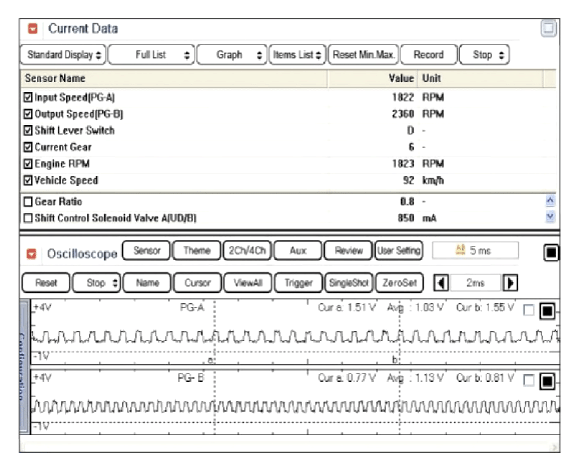

- Check the input/output speed sensor waveforms at high speed and low speed.
