Components & Components Location: Components

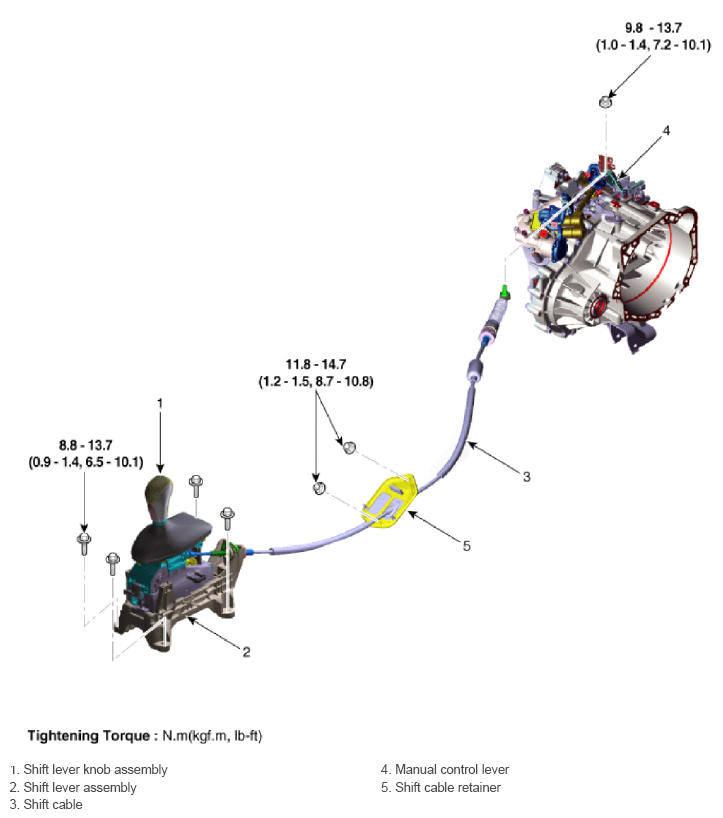

Fig 1: Shift Cable Components Location With Torque Specification
G13055973Courtesy of HYUNDAI MOTOR AMERICA
