Repair Procedures: Removal

  1. Air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

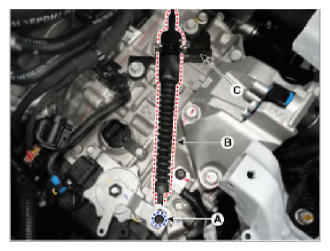

  3. Remove the nut (A) from the manual control lever.
  4. Remove the shift cable (B) from the bracket (C) at transaxle side.
    G13055974Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  6. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  7. Remove the heater unit & blower unit

    (Refer to BLOWER UNIT and HEATER UNIT Heating, Ventilation and Air Conditioning- "Heater & Blower")

  8. Disconnect the shift cable.

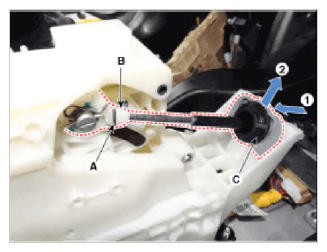

    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Release the lock and then remove the cable socket (C).
      G13055975Courtesy of HYUNDAI MOTOR AMERICA

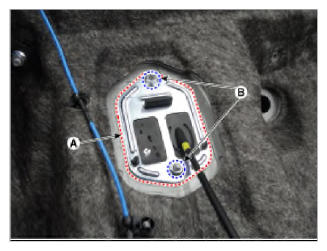

  9. Remove the retainer (A) by loosening the nuts (B-2 ea).
    G13055976Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the shift cable from the vehicle.
