Repair Procedures: Removal

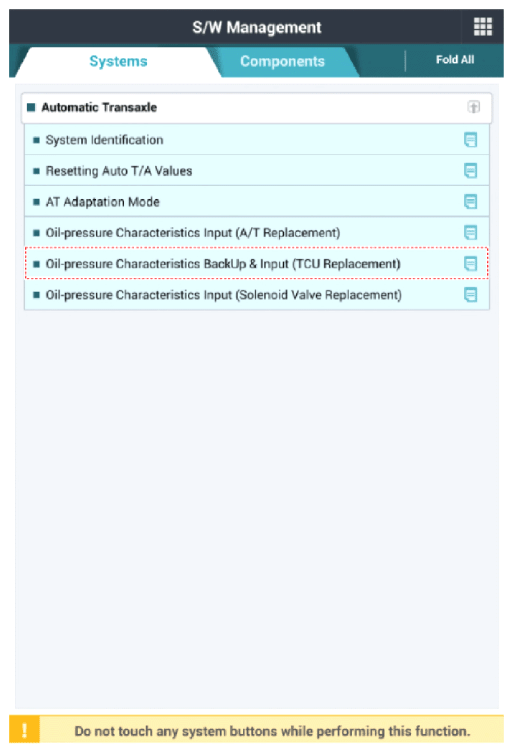

  1. Oil-pressure characteristics backup (TCM exchange).
    G13055910Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Disconnect the TCM connector (A).
  5. Remove the TCM (B).
    G13055911Courtesy of HYUNDAI MOTOR AMERICA
