Automatic Transaxle Control System - 2.0L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>

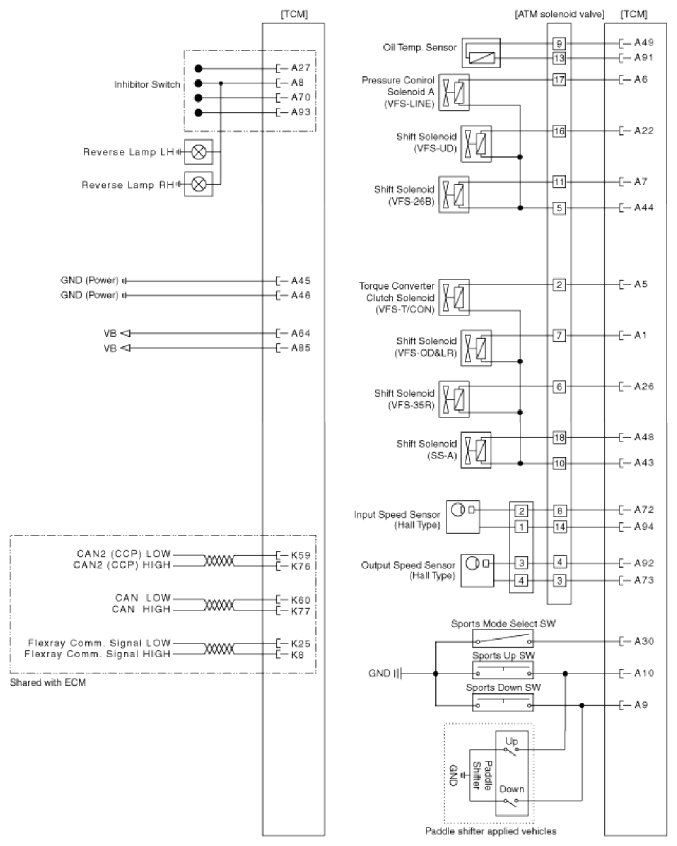

Circuit Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
