Repair Procedures: Inspection
- Turn ignition switch OFF.
- Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

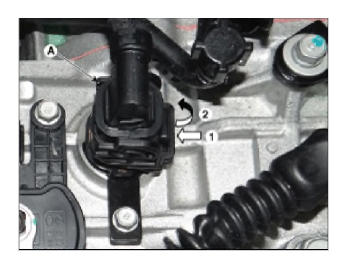

- Disconnect the solenoid valve connector (A).
- Measure resistance between sensor signal terminal and sensor ground terminal.
(Refer to SCHEMATIC DIAGRAMS )
- Check that the measured resistance is within the specification.
(Refer to SPECIFICATION )
