[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner. (Refer to Engine Mechanical System - "AIR CLEANER ")
  3. Remove the battery. (Refer to Engine Electrical System - "BATTERY ")

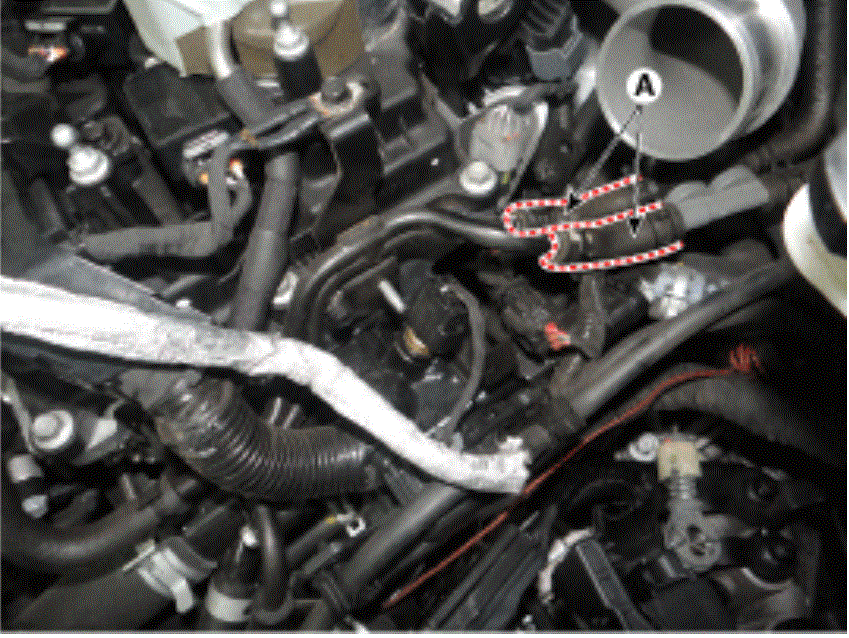

  4. Disconnect the vacuum hoses (A).
    G15472089Courtesy of HYUNDAI MOTOR AMERICA

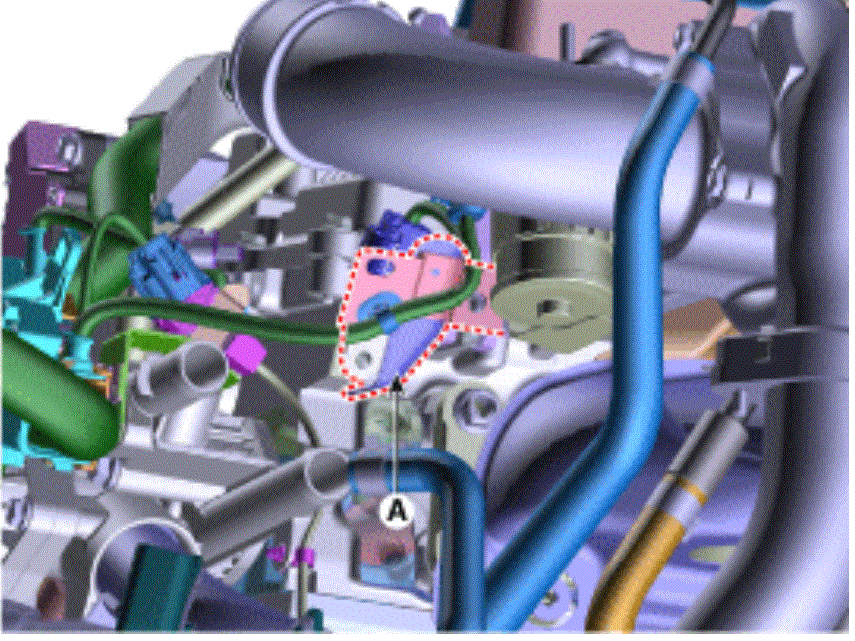

  5. Remove the camshaft position sensor bracket (A) after loosening the mounting bolt.
    G15472090Courtesy of HYUNDAI MOTOR AMERICA

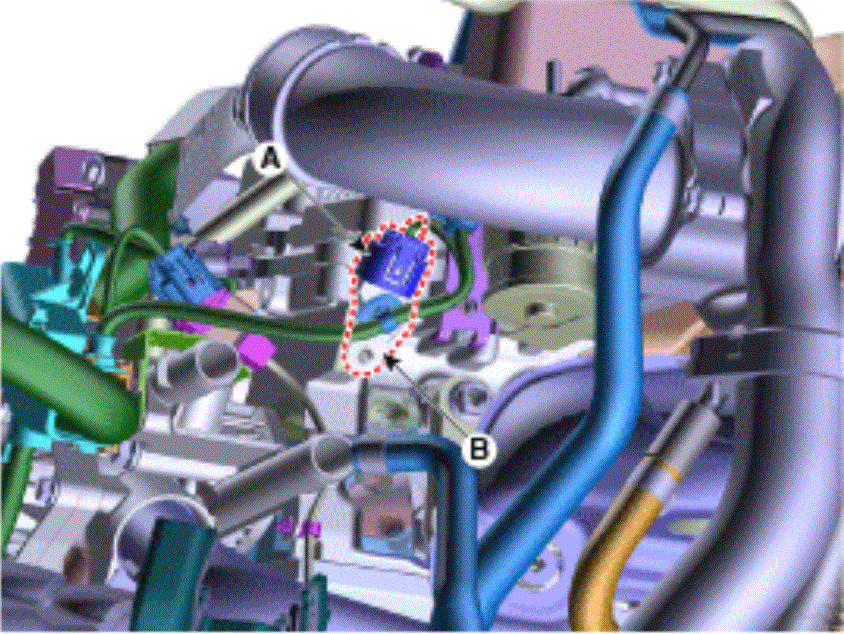

  6. Disconnect the camshaft position sensor connector (A).
  7. Remove the camshaft position sensor (B) after loosening the mounting bolt.
G15472091Courtesy of HYUNDAI MOTOR AMERICA
