Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")
  3. Remove the steering column upper and lower shrouds. (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

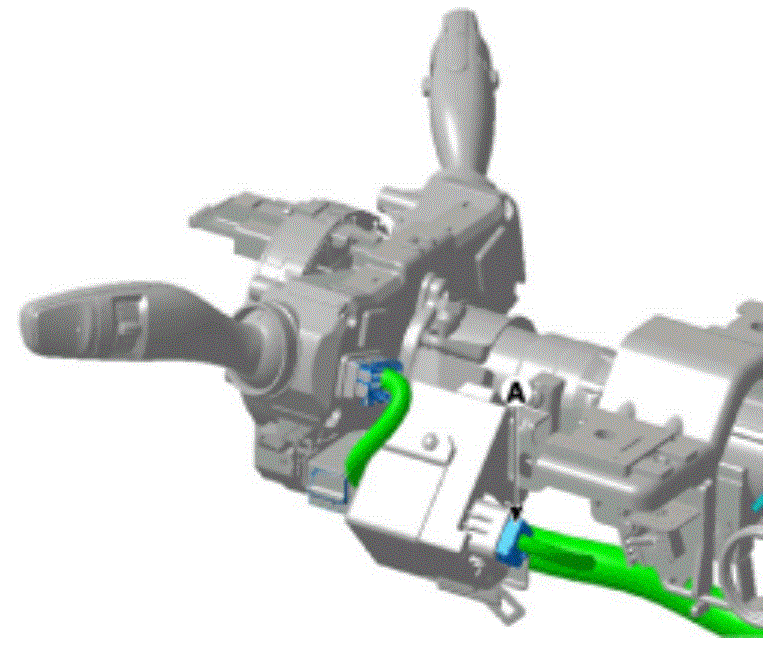

  4. Disconnect the electronic steering column lock connector (A).
    G15496992Courtesy of HYUNDAI MOTOR AMERICA

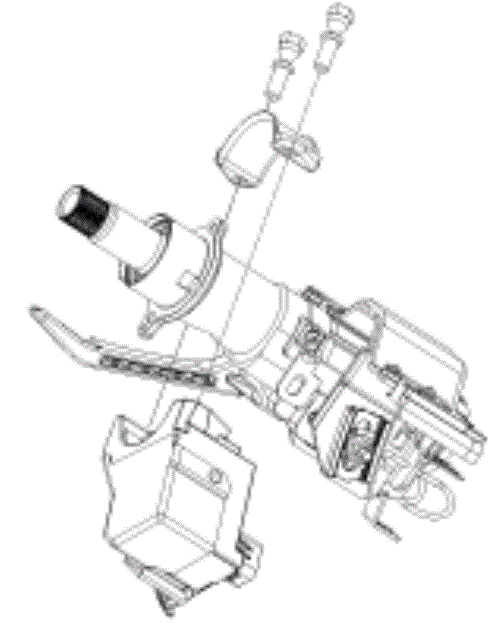

  5. Remove the electronic steering column lock. (Refer to Steering System - "STEERING COLUMN AND SHAFT ")
    G15496993Courtesy of HYUNDAI MOTOR AMERICA
