Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

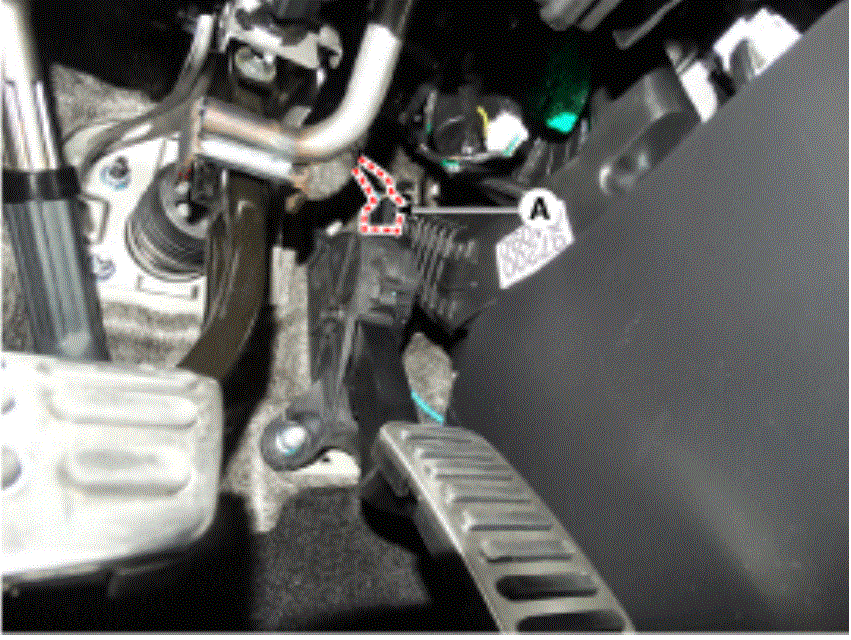

  2. Disconnect the accelerator position sensor connector (A).
    G15472119Courtesy of HYUNDAI MOTOR AMERICA

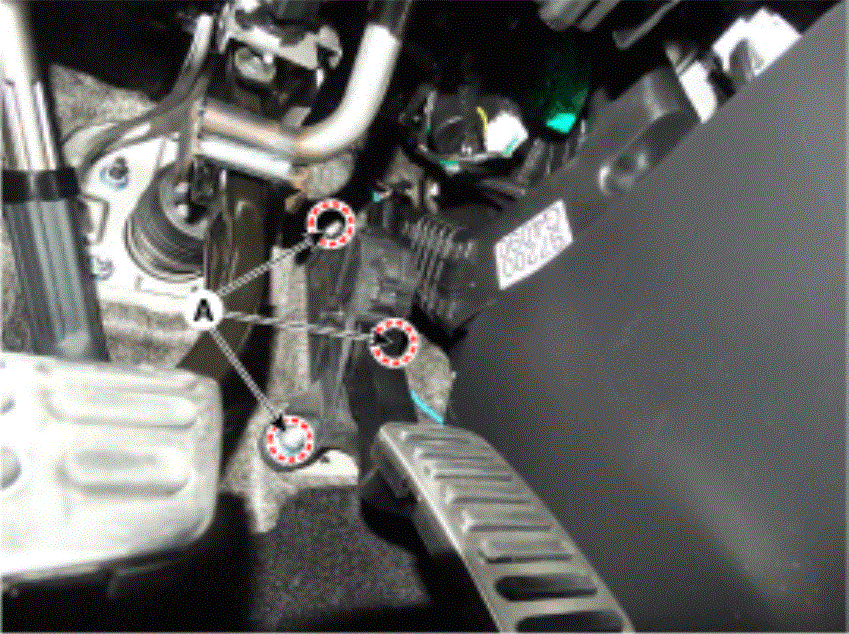

  3. Remove the installation nuts (A) and then remove the accelerator pedal module.
G15472120Courtesy of HYUNDAI MOTOR AMERICA
